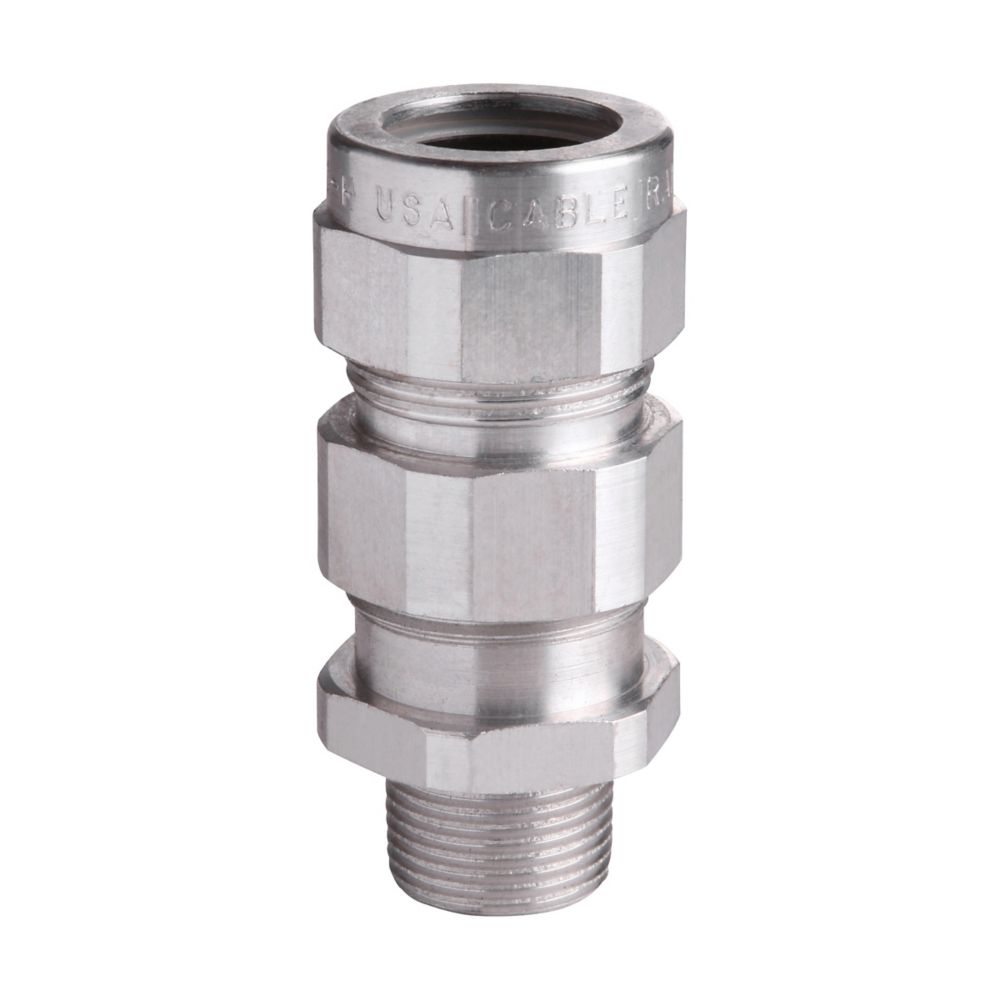

TMC9352 - Eaton Crouse-Hinds Series - 3-1/2" TMC Cable Gland
Eaton Crouse-Hinds series TMC cable gland, Metal-clad, TECK corrugated or interlocked steel, or aluminum, Armoured, Aluminum, Outer sheath: 3.02-3.78", General purpose, 3-1/2" NPT, Armor range: 2.95-3.52"
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series TMC cable gland |
| Catalog Number |
TMC9352 |
| UPC |
782274414638 |
| Product Length/Depth |
7.01 in |
| Product Height |
5.38 in |
| Product Width |
5.38 in |
| Product Weight |
5.15 lb |
| Product Type |
Cable gland |
PRODUCT SPECIFICATIONS
| Protection type |
General purpose |
| Cable type |
Metal-clad, TECK corrugated or interlocked steel, or aluminum |
| Gland type |
Armoured |
| Material |
Aluminum |
| Thread Size |
3-1/2" |
| Thread type |
NPT |
| Armor (min/max) |
2.95-3.52" |
| Outer sheath (min/max) |
3.02-3.78" |
