Description

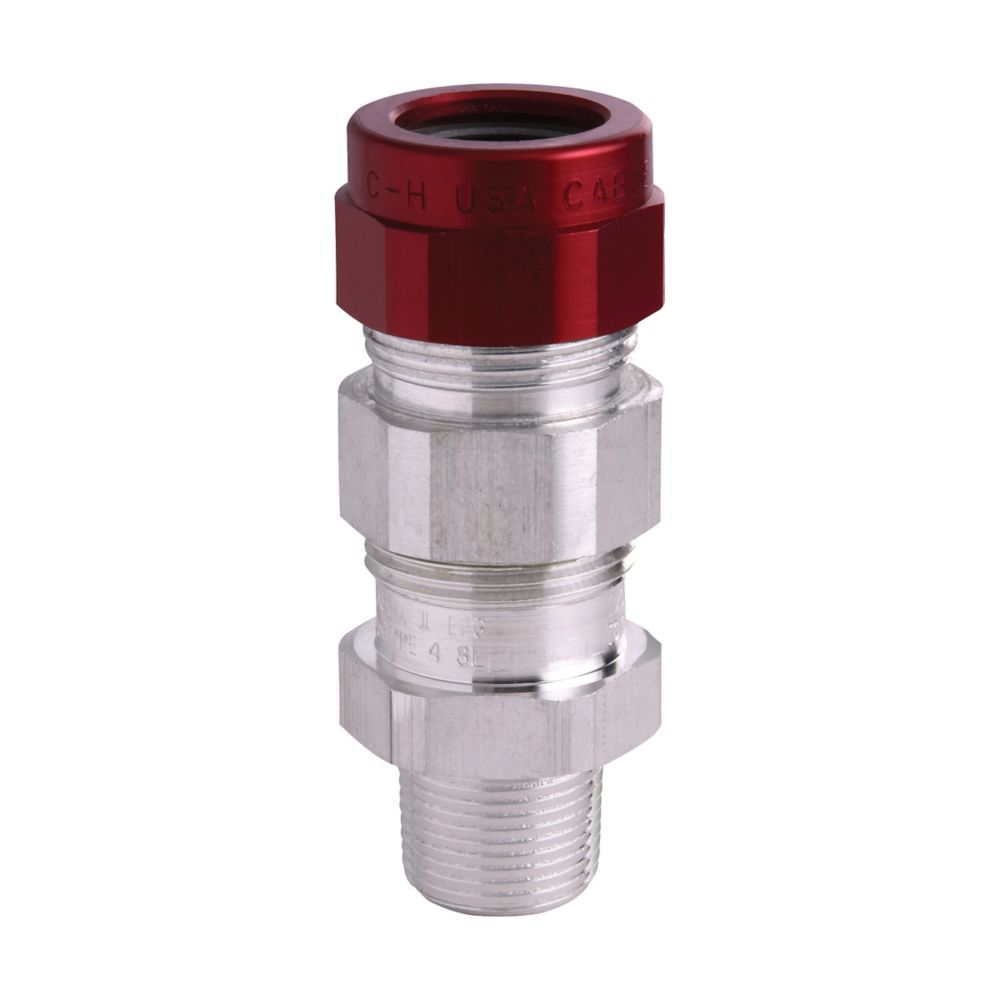

TMCX165 - Eaton Crouse-Hinds Series - 1/2" TMCX Cable Gland
Eaton Crouse-Hinds series TMCX cable gland, Metal-clad corrugated, TECK armoured and tray cable, Armoured barrier and non-armoured barrier, Aluminum, Outer Sheath:0.49-0.78", 1/2" NPT, Armor Range:0.44-0.65"
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series TMCX cable gland
|
| Catalog Number |
TMCX165
|
| UPC |
782274414669
|
| Product Length/Depth |
3.38 in
|
| Product Height |
1.38 in
|
| Product Width |
1.38 in
|
| Product Weight |
0.08 lb
|
| Product Type |
Cable gland
|
PRODUCT SPECIFICATIONS
| Protection type |
Explosion-proof
|
| Cable type |
Metal-clad with interlocked or continuously welded corrugated armoured
TECK armoured Tray cable |
| Gland type |
Armoured Barrier and Non-armoured Barrier
|
| Material |
Aluminum
|
| Thread Size |
1/2"
|
| Thread type |
NPT
|
| Armor (min/max) |
0.44-0.65"
|
| Outer sheath (min/max) |
0.49-0.78"
|
PRODUCT DATASHEET
