Description

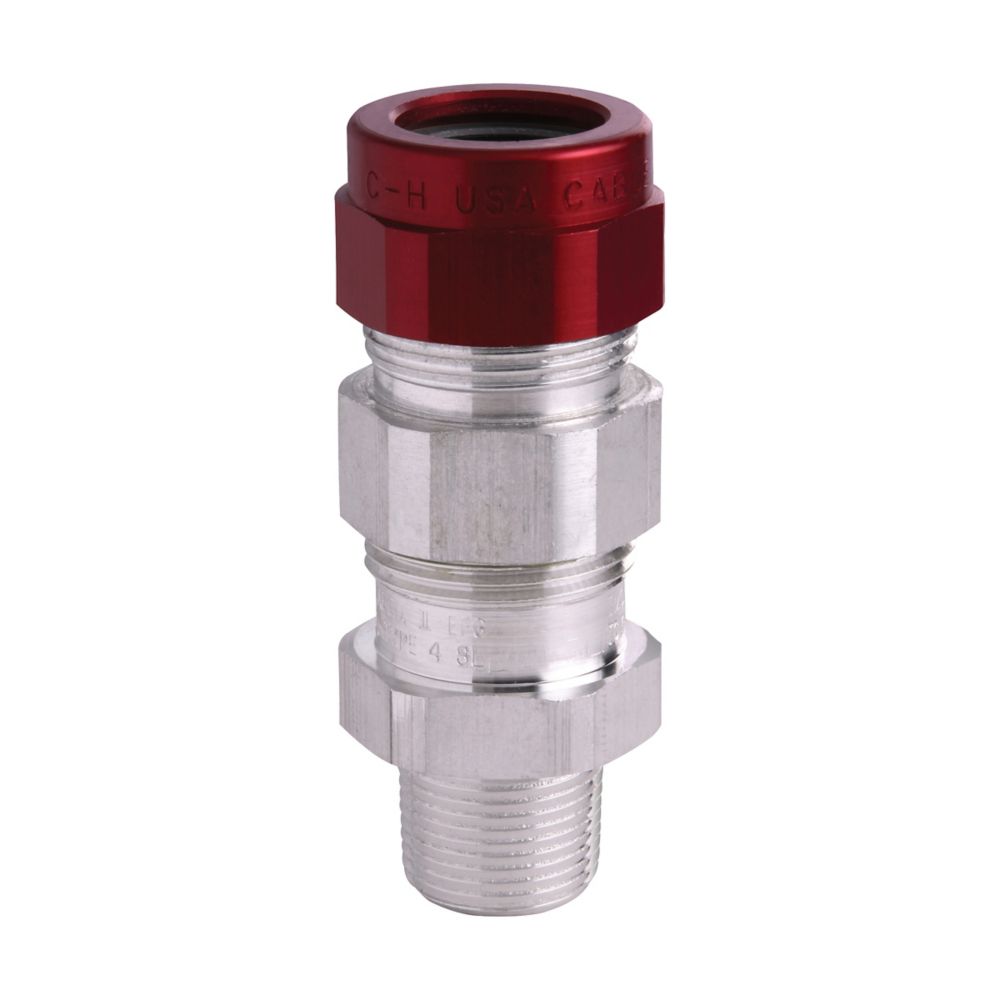

TMCX285 - Eaton Crouse-Hinds Series - 3/4" NPT TMCX Cable Gland
Eaton Crouse-Hinds series TMCX cable gland, Metal-clad corrugated, TECK armoured and tray cable, Armoured barrier and non-armoured barrier, Aluminum, Outer Sheath:0.65-1.00", 3/4" NPT, Armor Range:0.60-0.85"
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series TMCX cable gland |
| Catalog Number | TMCX285 |
| UPC | 782274414676 |
| Product Length/Depth | 3.66 in |
| Product Height | 1.63 in |
| Product Width | 1.63 in |
| Product Weight | 0.46 lb |
| Product Type | Cable gland |
PRODUCT SPECIFICATIONS
| Protection type | Explosion-proof |
| Cable type | TECK armoured Metal-clad with interlocked or continuously welded corrugated armoured Tray cable |
| Gland type | Armoured Barrier and Non-armoured Barrier |
| Material | Aluminum |
| Thread Size | 3/4" |
| Thread type | NPT |
| Armor (min/max) | 0.60-0.85" |
| Outer sheath (min/max) | 0.65-1.00" |
