Description

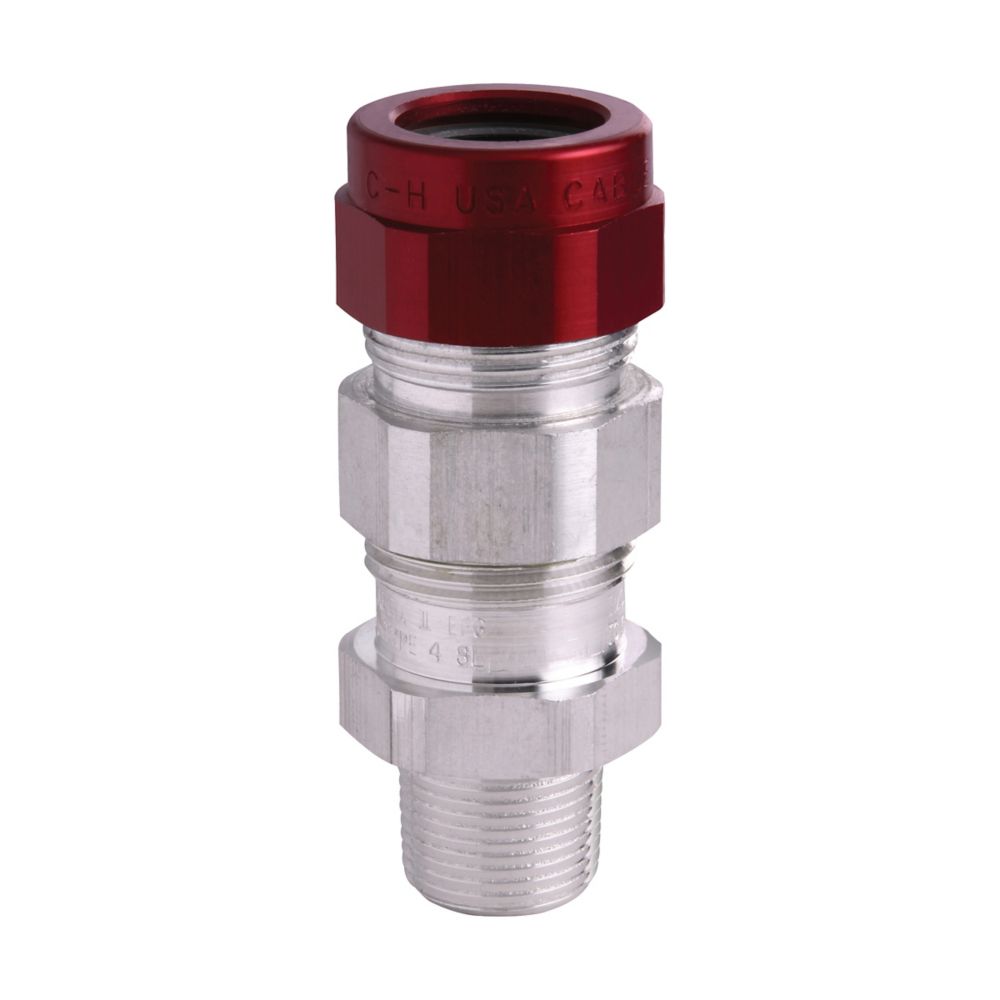

TMCX4140 - Eaton Crouse-Hinds Series - 1-1/4" TMCX Cable Gland
Eaton Crouse-Hinds series TMCX cable gland, Metal-clad corrugated, TECK armoured and tray cable, Armoured barrier and non-armoured barrier, Aluminum, Outer Sheath: 1.15- 1.62", 1-1/4" NPT, Armor Range:1.10-1.40"
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series TMCX cable gland
|
| Catalog Number |
TMCX4140
|
| UPC |
782274414690
|
| Product Length/Depth |
4.1 in
|
| Product Height |
2.44 in
|
| Product Width |
2.44 in
|
| Product Weight |
1.08 lb
|
| Product Type |
Cable gland
|
PRODUCT SPECIFICATIONS
| Protection type |
Explosion-proof
|
| Cable type |
TECK armoured
Tray cable Metal-clad with interlocked or continuously welded corrugated armoured |
| Gland type |
Armoured Barrier and Non-armoured Barrier
|
| Material |
Aluminum
|
| Thread Size |
1-1/4"
|
| Thread type |
NPT
|
| Armor (min/max) |
1.10-1.40"
|
| Outer sheath (min/max) |
1.15-1.62"
|
