Description

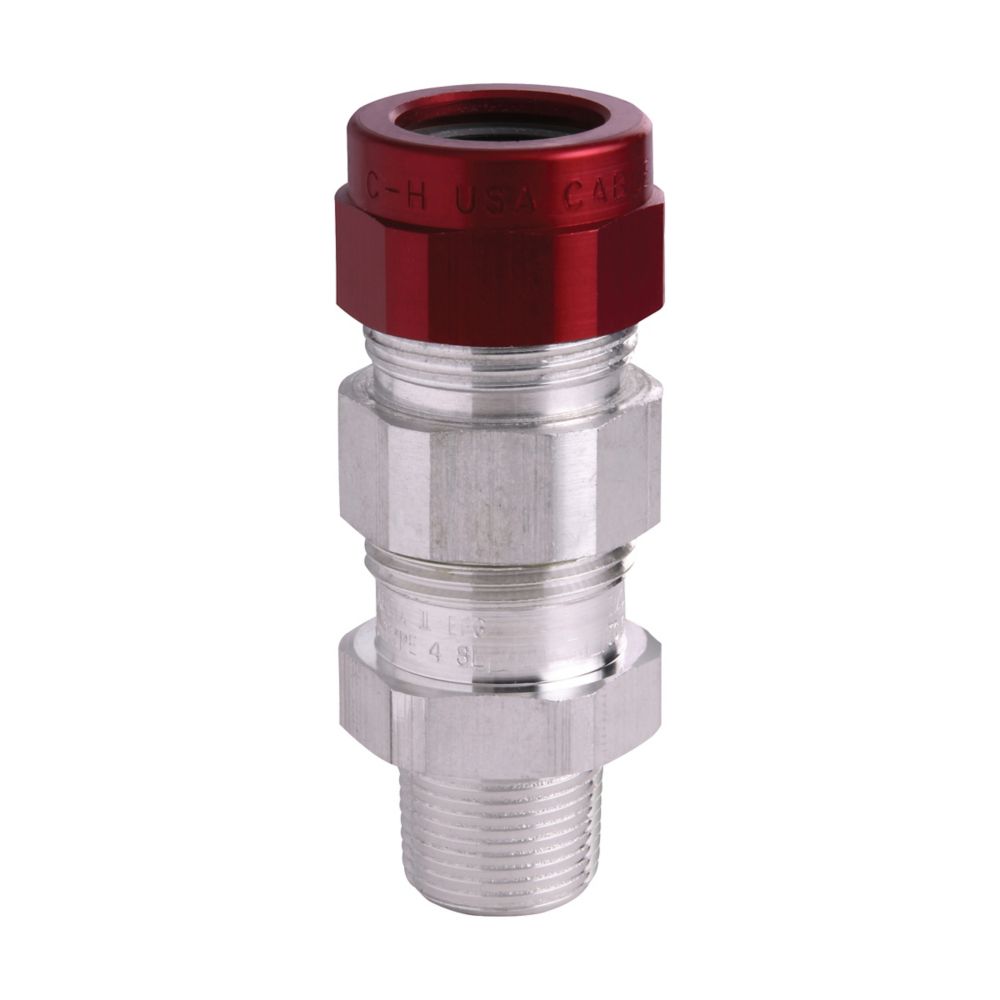

TMCX5161 - Eaton Crouse-Hinds Series - 1-1/2" TMCX Cable Gland
Eaton Crouse-Hinds series TMCX cable gland, Metal-clad corrugated, TECK armoured and tray cable, Armoured barrier and non-armoured barrier, Aluminum, Outer Sheath:1.38-1.78", 1-1/2" NPT, Armor Range:1.33-1.61"
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series TMCX cable gland
|
| Catalog Number |
TMCX5161
|
| UPC |
782274414713
|
| Product Length/Depth |
4.35 in
|
| Product Height |
2.75 in
|
| Product Width |
2.75 in
|
| Product Weight |
1.3 lb
|
| Product Type |
Cable gland
|
PRODUCT SPECIFICATIONS
| Protection type |
Explosion-proof
|
| Cable type |
TECK armoured
Tray cable Metal-clad with interlocked or continuously welded corrugated armoured |
| Gland type |
Armoured Barrier and Non-armoured Barrier
|
| Material |
Aluminum
|
| Thread Size |
1-1/2"
|
| Thread type |
NPT
|
| Armor (min/max) |
1.33-1.61"
|
| Outer sheath (min/max) |
1.38-1.78"
|
