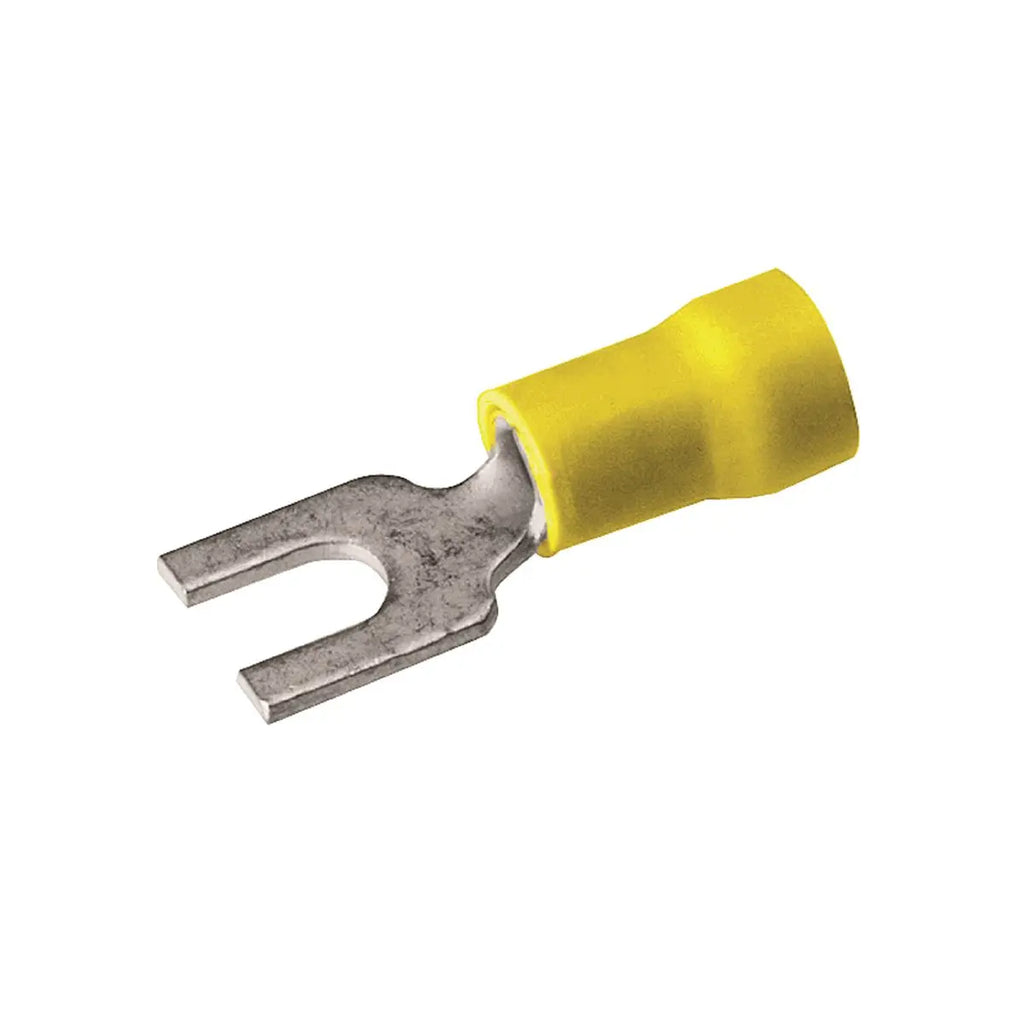

TP1010F - Burndy - 12-10 AWG Vinyl Fork Terminal
Copper Terminal, Fork Tongue, 12-10 AWG, #8-#10 Stud, Vinyl Insulated, Tin Plated.
TP1010F.
- Fork terminals are constructed of pure electrolytic copper
- Long brazed seam barrel with deep V groove inner serations for optimum conductivity, reliability and holding power after crimping
- Fork tongue design for faster installation - screw only needs to be loosened for termination
- Two or more terminals can be stacked on a common stud
- Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Electro-tin plating for durable, long lasting corrosion resistance
- Inspection hole/skive provides an easy visual check of proper wire insertion
- 600 Volts maximum, 105°C maximum
GENERAL SPECIFICATIONS
| Application | For Commercial And Light Duty Industrial Control And Power Circuit Applications |
| Catalog Number | TP1010F |
| Color Code | Yellow |
| Connector Type | Fork Terminal |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style | Shrouded |
| Insulation | Y |
| Insulation Type | Vinyl |
| Material | Copper |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Fork |
| Plated | Y |
| Plating Type | Tin |
| Sub Brand | VINYLUG |
| Trade Name | VINYLUG™ |
| Type | TP-F |
| UPC | 781810710883 |
| UPC 14 Digit GTIN | 00781810710883 |
Dimensions
| Cable Insulation Diameter Maximum | 0.26 in |
| Dimension - B Length fraction | 17/50 in |
| Dimension - B Length inch | 0.34 in |
| Dimension - Bolt Size fraction | #10 |
| Dimension - Hole Size fraction | 1/5 |
| Dimension - Hole Size inch | 0.20 in |
| Dimension - L Length Overall mm | 27 mm |
| Dimension - Length Overall inch | 1.07 in |
| Dimension - Pad Width inch | 0.41 in |
| Dimension - Strip Length inch | 11/32 in |
| Dimension - Stud Size inch | #10 |
| Dimension - Z (inch) | 0.31 in |
Electrical Ratings
| Voltage - Maximum | 600 V |
Conductor Related
| Conductor Range | #12 AWG to #10 AWG |
| Conductor Size | 12 - 10 AWG |
| Conductor Type | CU C Str-Size |
Configuration
| Connector Type | Fork Terminal |
| Physical Attribute - Number of Holes | 1 |
Logistics
| Carton Quantity | 600 |
| Minimum Pack Quantity | 50 |
| Pallet Quantity | 99999 |
