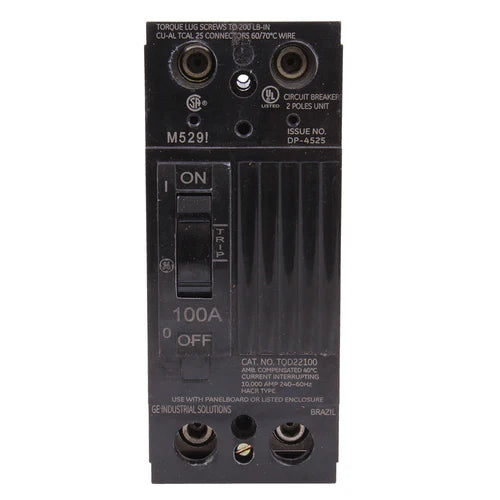

TQD22100WL - General Electric - 2 Pole 100A 240V Molded Case Circuit Breaker Q-Line
TQD22100WL is a General Electric molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.This 2-pole, 100 amp breaker operates at 240 volts and is part of the GE Q-Line series. It features a non-interchangeable trip unit, thermal magnetic protection, and accepts both copper and aluminum conductors with line and load side lugs. The TQD22100WL is rated for 10,000 amps interrupting capacity at 240V, ensuring robust performance in demanding environments.
TECHNICAL SPECIFICATIONS
| Part Number | TQD22100WL |
| Manufacturer | General Electric |
| Category | Circuit Breaker |
| Amperage | 100A |
| Voltage | 240V |
| Poles | 2 |
| Mounting Type | Panel Mount |
| Interrupt Rating | 10kA @ 240V |
| Series/Frame | Q-Line, Type TQD |
| Item Subcategory | Molded Case |
| Family | Q-Line |
| Type | TQD |
| Voltage | 240 |
| Amperage | 100 |
| Phase | 1 |
| Poles | 2 |
| AIC rating | 10kA@240V |
| Connection | Feed-Thru |
| Functions | LI - Long-Time and Instantaneous Trip |
| Protection | Thermal Magnetic |
| UPC | 783164150841 |
| GTIN | 00783164150841 |
| Weight | 2 |
