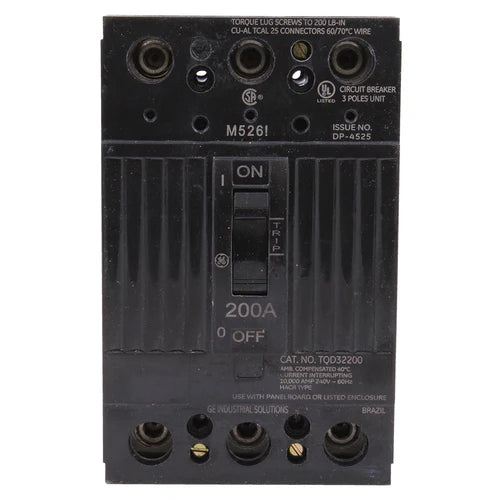

TQD32200WL - General Electric - 200A 240V 3-Pole Molded Case Circuit Breaker TQD Frame Thermal Magnetic
TQD32200WL is a General Electric Q-Line molded case circuit breaker designed for 120/240 VAC applications with a 200 amp rating and 3 poles.This circuit breaker features a TQD frame with a thermal magnetic trip unit that is LI/non-interchangeable. It has a 10 kA interrupt rating at 240 volts, suitable for bolt-on mounting with copper/aluminum line and load lugs. The breaker supports reverse feed applications and is UL approved.
TECHNICAL SPECIFICATIONS
| Part Number | TQD32200WL |
| Manufacturer | General Electric |
| Category | Circuit Breaker |
| Item Subcategory | Molded Case |
| Family | Q-Line |
| Type | TQD |
| Voltage | 240 |
| Amperage | 200 |
| Phase | 3 |
| Poles | 3 |
| AIC rating | 10kA@240V |
| Connection | Feed-Thru |
| Functions | LI - Long-Time and Instantaneous |
| Protection | Thermal Magnetic |
| UPC | 783164021356 |
| GTIN | 00783164021356 |
| Dimensions | 6.56" X 4.13" X 2.67" |
| Weight | 3 lb |
