Description
VC1GUN - Schneider Electric - Square D Enclosed Switch Disconnector TeSys Control for ON/Emergency Stop 20A Conforming UL/CSA Standard

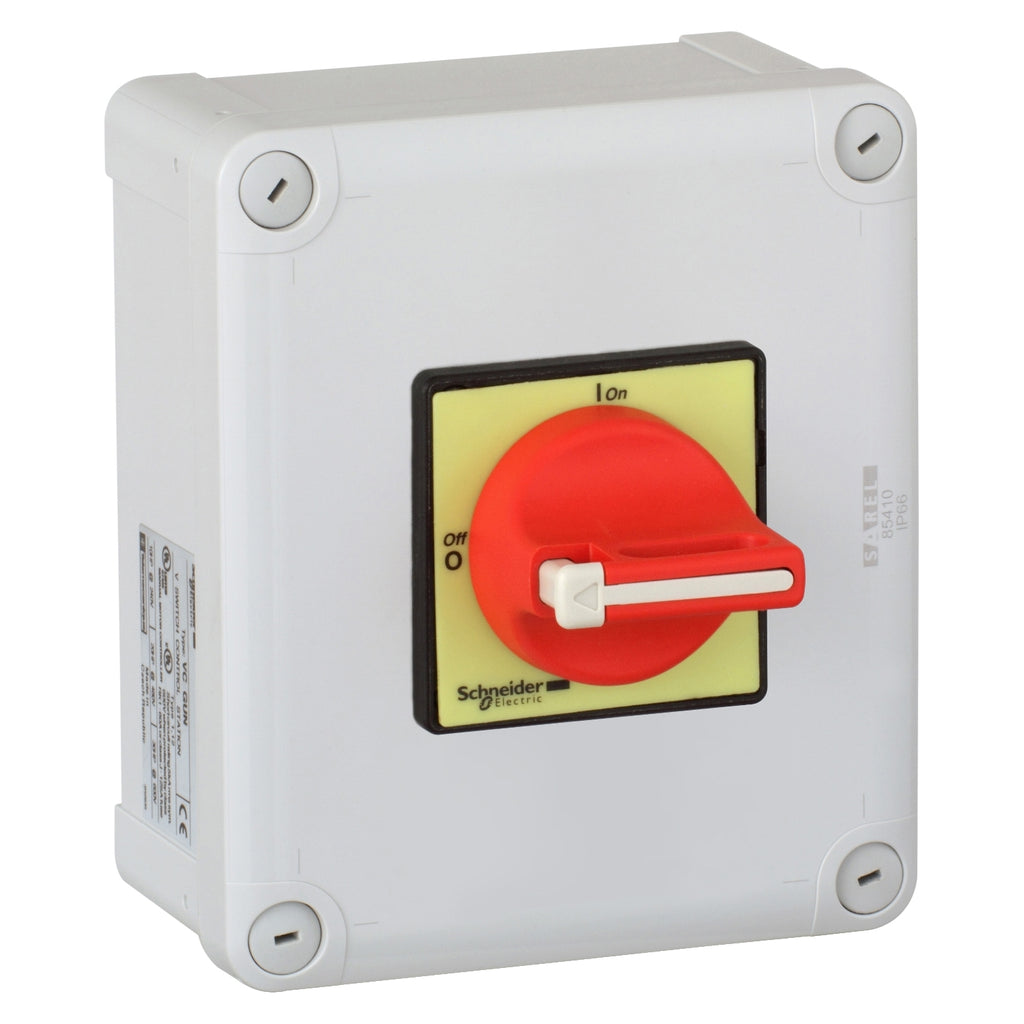

VC1GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 10HP@600V. It provides an IP65 / NEMA type 12 enclosure, V1 Vario switch disconnector and red & yellow operator. VC1GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 10HP@600V. It includes a V1 Vario switch disconnector rated 20A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V1 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n deg 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ1), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).
GENERAL SPECIFICATIONS
| Range | TeSys |
|---|---|
| product name | TeSys VARIO |
| Device short name | VC-GUN |
| Product or Component Type | Enclosed emergency stop switch disconnector |
| Performance level | High performance |
| Poles description | 3P |
| Control Type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 0.2...0.3 in (4...8 mm) |
| Marking | 0 - 1 |
|---|---|
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 25 A |
| [Ie] rated operational current | 21.8 A AC-23A)400 V |
| Rated operational power in W | 11 kW 400 V AC-23) 7.5 kW 400 V AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I rms) | 320 A 400 V AC-21A 320 A 400 V AC-22A 320 A 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 1 kA 400 V at Ipeak |
| [Ith] conventional free air thermal current | 25.0 A IEC 690 V 20 A UL 600 V |
| Rated power in hp | 5 hp 240 V, UL 10 hp 480 V, UL 10 hp 600 V, UL |
| [Icw] rated short-time withstand Rms current | 384 A 400 V 1 s |
| Rated conditional short-circuit current | 10 kA 400 V 35 A aM 10 kA 400 V 35 A gG |
| Breaking capacity | 250 A 400 V AC-21A) 250 A 400 V AC-22A) 250 A 400 V AC-23A) |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-21 30000 cycles DC-1...5 |
| Environmental characteristic | Standard environment |
| Suitability for isolation | Yes |
| Connections - terminals | screw clamp terminals 0.02 in (10 mm) solid - with cable end screw clamp terminals 0.009 in (6 mm) flexible |
| Tightening torque | 18.6 lbf.in (2.1 N.m) screw clamp terminals |
| Fire resistance | 1760 degF (960 degC) IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 6.5 in (164 mm) |
| Width | 4.8 in (121 mm) |
| Depth | 5.2 in (132 mm) |
| Net Weight | 1.1 lb(US) (0.5 kg) |
| Standards | CSA C22.2 No 14 IEC 60204 UL 508 IEC 60947-4-1 |
|---|---|
| Protective treatment | TC |
| IP degree of protection | IP65 conforming to IEC 60529 |
| NEMA Degree of Protection | NEMA 12 |
| Mechanical robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Ambient air temperature for operation | -4...122 degF (-20...50 degC) |
| Category | US10CP121730 |
|---|---|
| Discount Schedule | 0CP1 |
| GTIN | 3389119413176 |
| Returnability | Yes |
| Country of origin | CZ |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.31 in (13.500 cm) |
| Package 1 Width | 7.28 in (18.500 cm) |
| Package 1 Length | 5.51 in (14.000 cm) |
| Package 1 Weight | 23.069 oz (654.000 g) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 15.75 in (40.000 cm) |
| Package 2 Length | 23.62 in (60.000 cm) |
| Package 2 Weight | 21.850 lb(US) (9.911 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 56 |
| Package 3 Height | 29.53 in (75.000 cm) |
| Package 3 Width | 23.62 in (60.000 cm) |
| Package 3 Length | 31.50 in (80.000 cm) |
| Package 3 Weight | 120.364 lb(US) (54.596 kg) |
