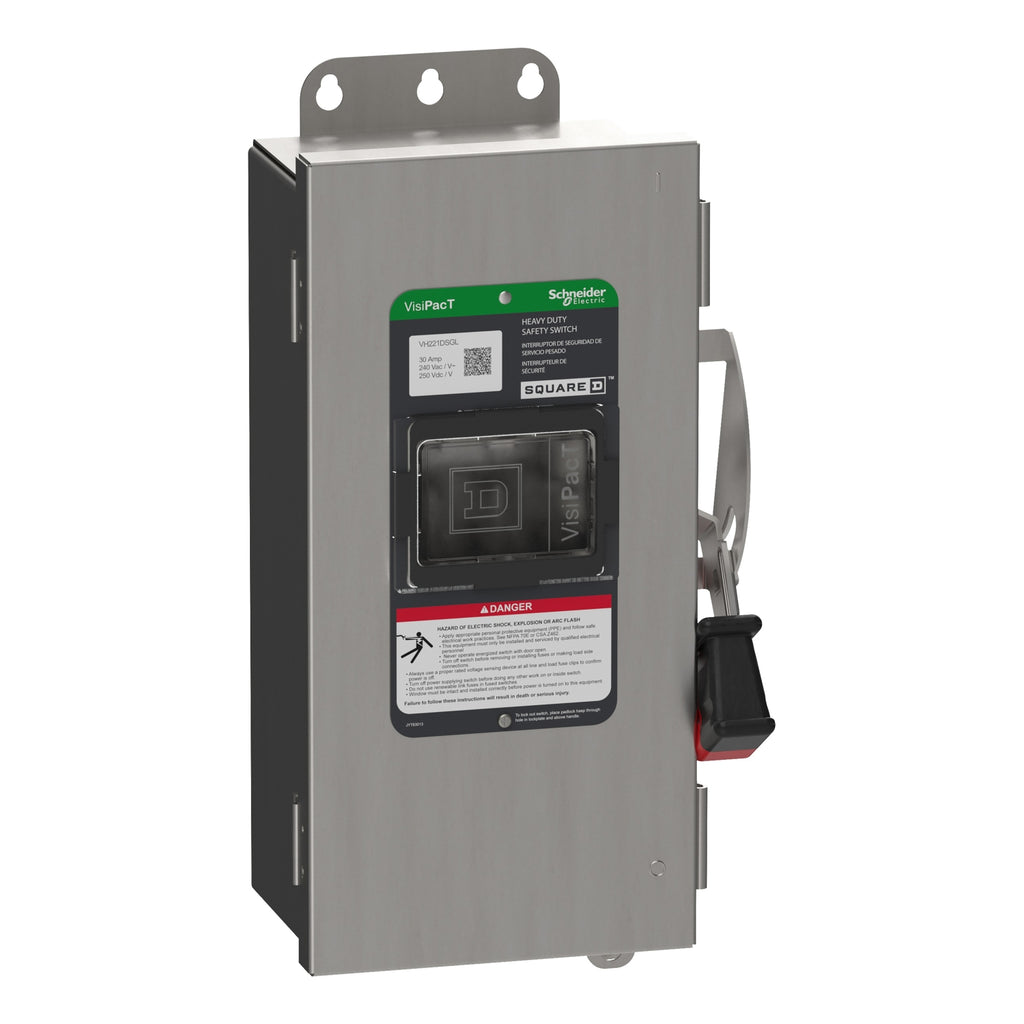

VH221DSGL - Schneider Electric - 100A 240V Square D VisiPacT Heavy Duty Safety Switch 2Pole NEMA 3R Door Interlock
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This two blade fusible heavy duty safety switch that is rated at 30A with a voltage 240 VAC and 250 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 4X rated with a stainless steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 2-wire configuration of 2 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 6 aluminium and AWG 14...AWG 6 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | Field installed kit available |
| Number of Poles | 2 |
| Current Rating | 30 A |
| Voltage Rating | 250 V DC 240 V AC |
| Enclosure Rating | NEMA 4X stainless steel 304 |
| Standard Motor Power Rating | 1.5 hp at 240 V AC 50-60 Hz for 1 phase motors 3 hp at 240 V AC 50-60 Hz for 3 phase motors 3 hp at 240 V AC 50-60 Hz for 1 phase motors 7.5 hp at 240 V AC 50-60 Hz for 3 phase motors 5 hp at 250 V DC |
| Short-circuit current | 10 kA for H, K, J or R without fuse rejection clips 200 kA for R with fuse rejection clips 200 kA for J |
|---|---|
| Fuse type | H or K R or J |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 2-wire |
| Wire Size | AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper |
| Tightening torque | 45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) (AWG 6) 40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8) 35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.06…5.261 mm²) (AWG 14...AWG 10) |
| Depth | 5.384 in (136.754 mm) |
| Width | 7.22 in (183.39 mm) |
| Height | 14.93 in (379.22 mm) |
| Net Weight | 13.2 lb(US) (6 kg) |
| Grounding Kit | Factory installation |
| Service Entrance | Suitable service entrance for USA Suitable service entrance for Mexico |
| Certifications | UL listed file E2875 |
|---|---|
| Standards | UL98 CSA C22.2 No 4 NOM-003-SCFI-2000 |
| Category | US10DE100010 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 3606485893051 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.50 in (13.97 cm) |
| Package 1 Width | 8.875 in (22.542 cm) |
| Package 1 Length | 16.625 in (42.227 cm) |
| Package 1 Weight | 13.2 lb(US) (6 kg) |
