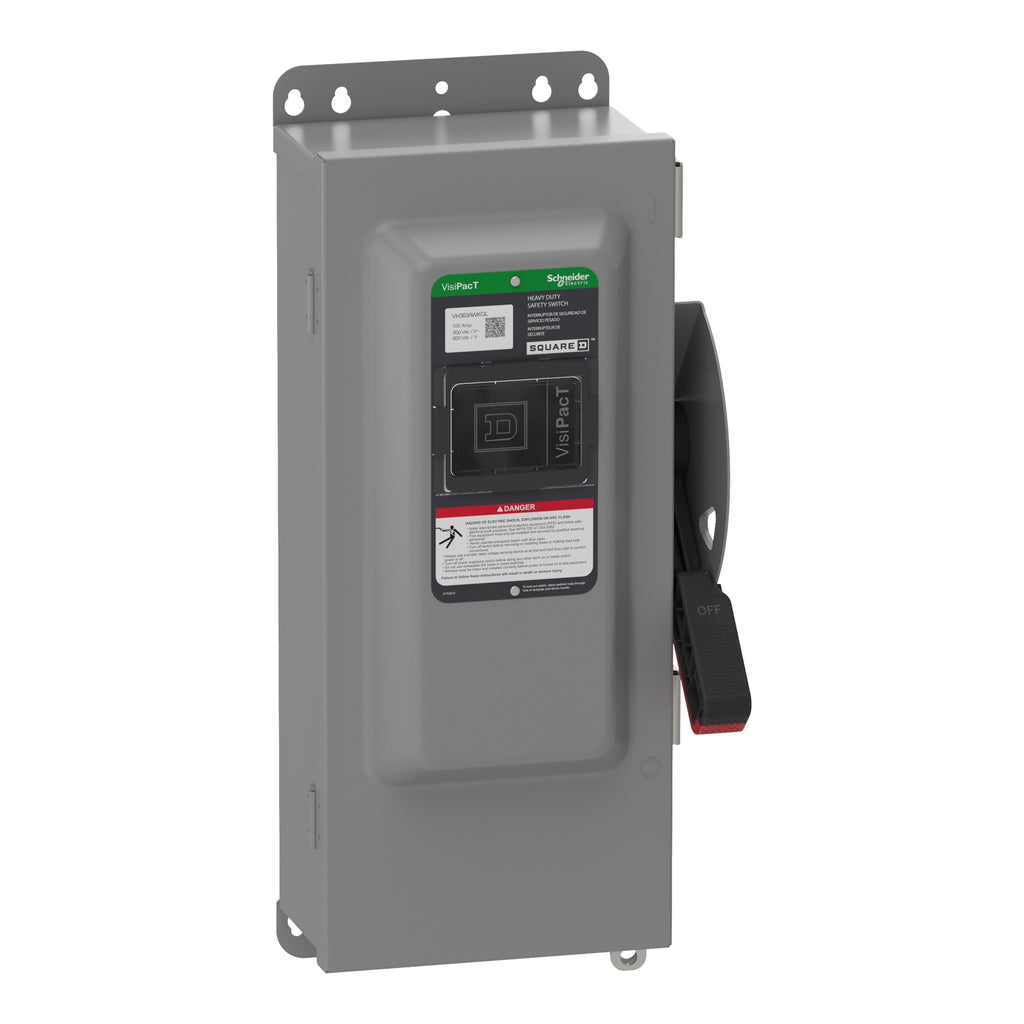

VH363AWKGL - Schneider Electric - 200A 240V Square D VisiPacT Heavy Duty Fused Safety Switch 3Pole NEMA 3R
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 100A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 12 rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Fusible disconnect |
| Factory Installed Neutral | Field installed kit available |
| Number of Poles | 3 |
| Current Rating | 100 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 12 galvannealed steel |
| Standard Motor Power Rating | 25 hp at 480 V AC 50-60 Hz for 3 phase motors 60 hp at 480 V AC 50-60 Hz for 3 phase motors 30 hp at 600 V AC 50-60 Hz for 3 phase motors 100 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 600 V DC |
| Short-circuit current | 10 kA for H, K, J or R without fuse rejection clips 200 kA for R with fuse rejection clips 200 kA for J |
|---|---|
| Fuse type | H or K R or J |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper |
| Tightening torque | 50 lbf.in (5.6 N.m) (AWG 1...AWG 3/0) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8) 35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.06…5.261 mm²) (AWG 14...AWG 10) |
| Depth | 7.15 in (181.61 mm) |
| Width | 8.92 in (226.57 mm) |
| Height | 20.49 in (520.45 mm) |
| Net Weight | 20.99 lb(US) (9.52 kg) |
| Grounding Kit | Factory installation |
| Service Entrance | Suitable service entrance for USA Suitable service entrance for Mexico |
| Certifications | UL listed file E2875 |
|---|---|
| Standards | UL98 CSA C22.2 No 4 NOM-003-SCFI-2000 |
| Category | US10DE100113 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 3606485894225 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 22.6250 in (57.4675 cm) |
| Package 1 Width | 10.3750 in (26.3525 cm) |
| Package 1 Length | 7.00 in (17.78 cm) |
| Package weight(Lbs) | 20.9 lb(US) (9.5 kg) |
