Description

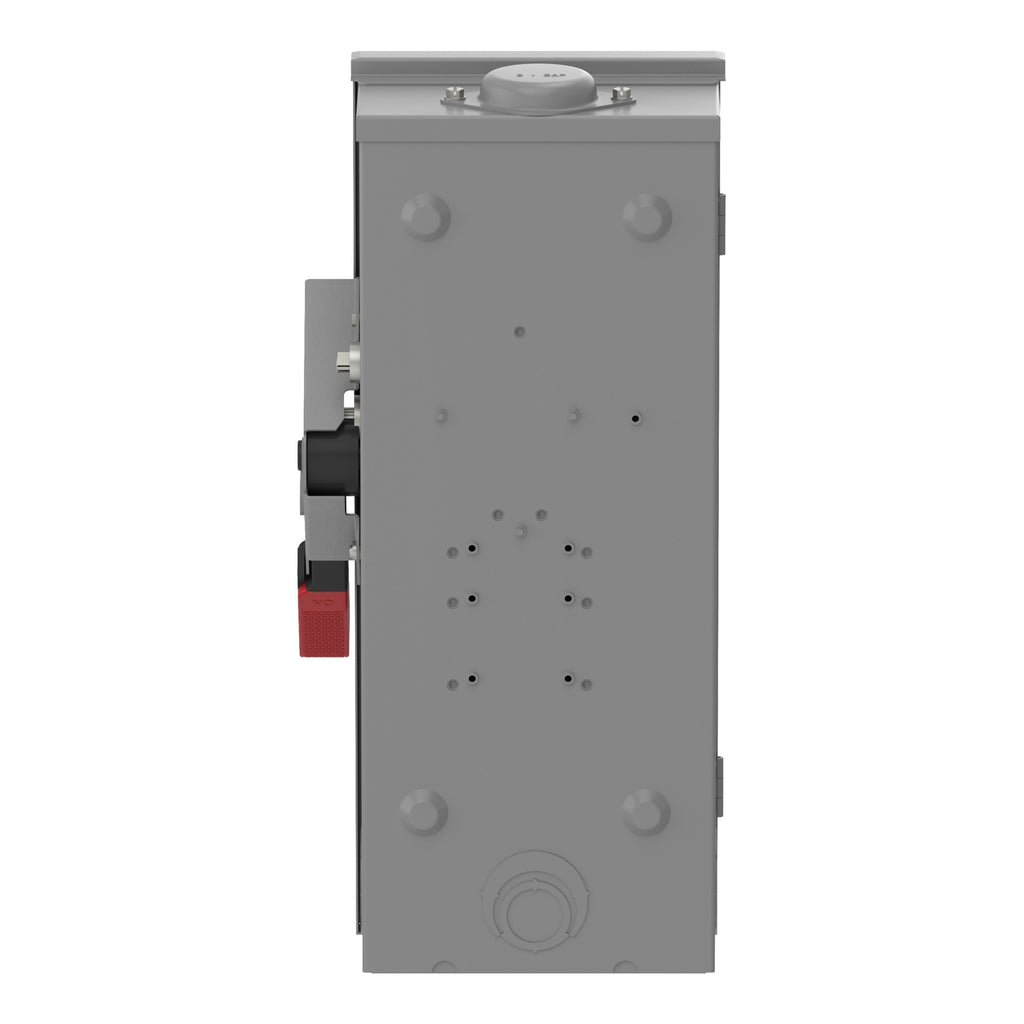

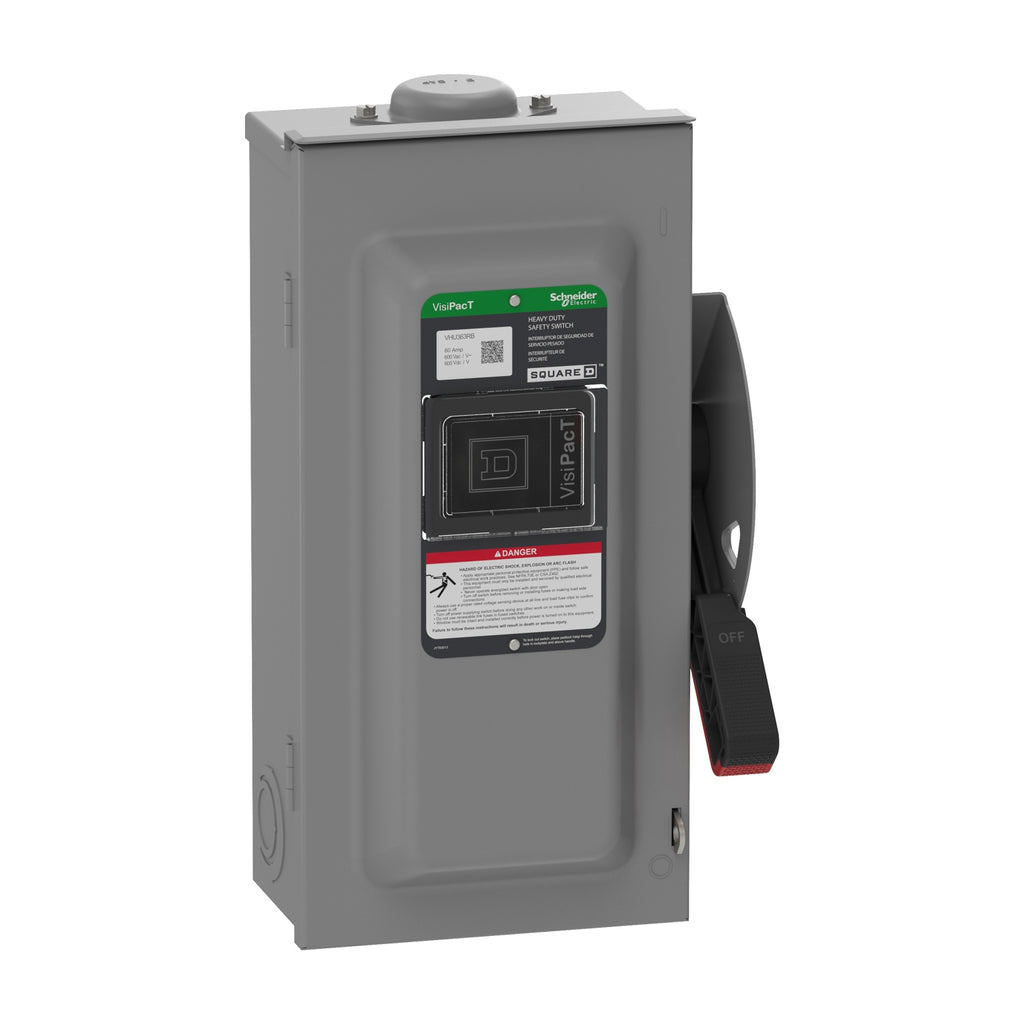

VHU363RB - Schneider Electric - 200A 240V Square D VisiPacT Fused Safety Switch 3Pole NEMA 3R
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade non-fusible heavy duty safety switch that is rated at 100A with a voltage 600 VAC and 600 VDC. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection. This switch is Type 3R rated with a galvannealed steel enclosure and comes with factory installed viewing window and are surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect does not come with lugs that are grounded and must be done in the field using a grounding kit. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Non-fusible disconnect |
| Factory Installed Neutral | Field installed kit available |
| Number of Poles | 3 |
| Current Rating | 100 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 3R galvannealed steel |
| Standard Motor Power Rating | 20 hp at 240 V AC 50/60 Hz for 1 phase motors 40 hp at 240 V AC 50/60 Hz for 3 phase motors 40 hp at 480 V AC 50/60 Hz for 1 phase motors 75 hp at 480 V AC 50/60 Hz for 3 phase motors 40 hp at 600 V AC 50/60 Hz for 1 phase motors 100 hp at 600 V AC 50/60 Hz for 3 phase motors 20 hp at 250 V DC 50 hp at 600 V DC |
| Mounting Type | Surface |
|---|---|
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper |
| Tightening torque | 50 lbf.in (5.6 N.m) (AWG 1...AWG 3/0) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8) 35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.06…5.261 mm²) (AWG 14...AWG 10) |
| Depth | 7.019 in (178.283 mm) |
| Width | 9.08 in (230.63 mm) |
| Height | 22.103 in (561.416 mm) |
| Product Weight | 18.39 lb(US) (8.34 kg) |
| Grounding Kit | Field installed kit available |
| Service Entrance | Suitable service entrance for USA Suitable service entrance for Mexico |
| Certifications | UL listed file E2875 |
|---|---|
| Standards | UL98 CSA C22.2 No 4 NOM-003-SCFI-2000 |
| Category | US10DE100009 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 3606485894805 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 22.6250 in (57.4675 cm) |
| Package 1 Width | 10.3750 in (26.3525 cm) |
| Package 1 Length | 7.00 in (17.78 cm) |
| Package weight(Lbs) | 19.8 lb(US) (9 kg) |
PRODUCT DATASHEET
