W+200M1CFC - Eaton Cutler Hammer - NEMA starter

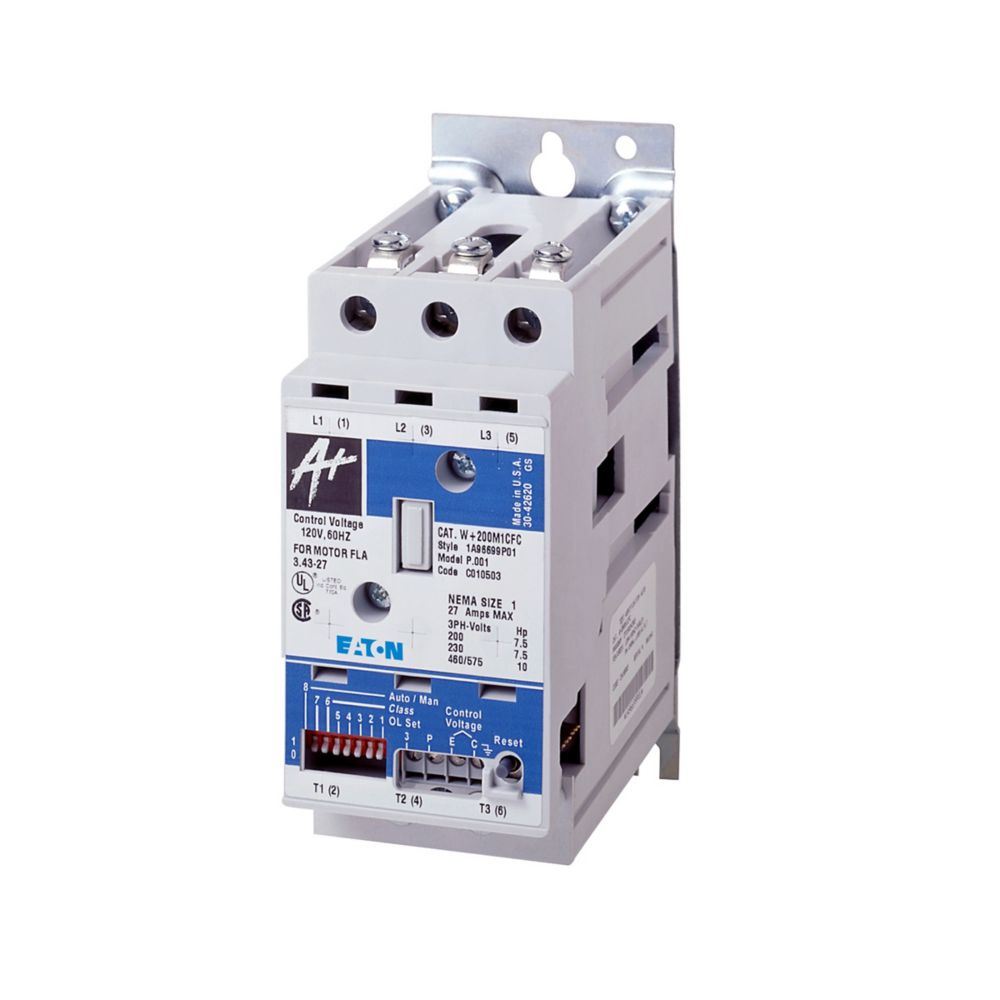

The W 200M1CFC is a non-reversing magnetic motor starter, NEMA Size 1, designed for 71/2 hp (200-230 V) or 10 hp (460-575 V) motors. It handles full-load currents from 3.15 to 27 A, includes solid-state overload protection, and is rated up to 600 VAC. Compact and lightweight (approx. 9.18" deep x 6.18" wide x 5.37" high, 3.1 lb), it's UL-listed and CSA-certified, ideal for compact control applications.
GENERAL SPECIFICATIONS
| Product Name |
Eaton NEMA starter |
| Catalog Number |
W+200M1CFC |
| UPC |
782114979037 |
| Product Length/Depth |
9.18 in |
| Product Height |
5.37 in |
| Product Width |
6.18 in |
| Product Weight |
3.1 lb |
| Compliances |
NEMA Compliant |
| Global Catalog |
W+200M1CFC |
| Product Type |
Starter |
PRODUCT SPECIFICATIONS
| Frequency rating |
60 Hz |
| Size |
2 |
PRODUCT DATASHEET
W+200M1CFC
