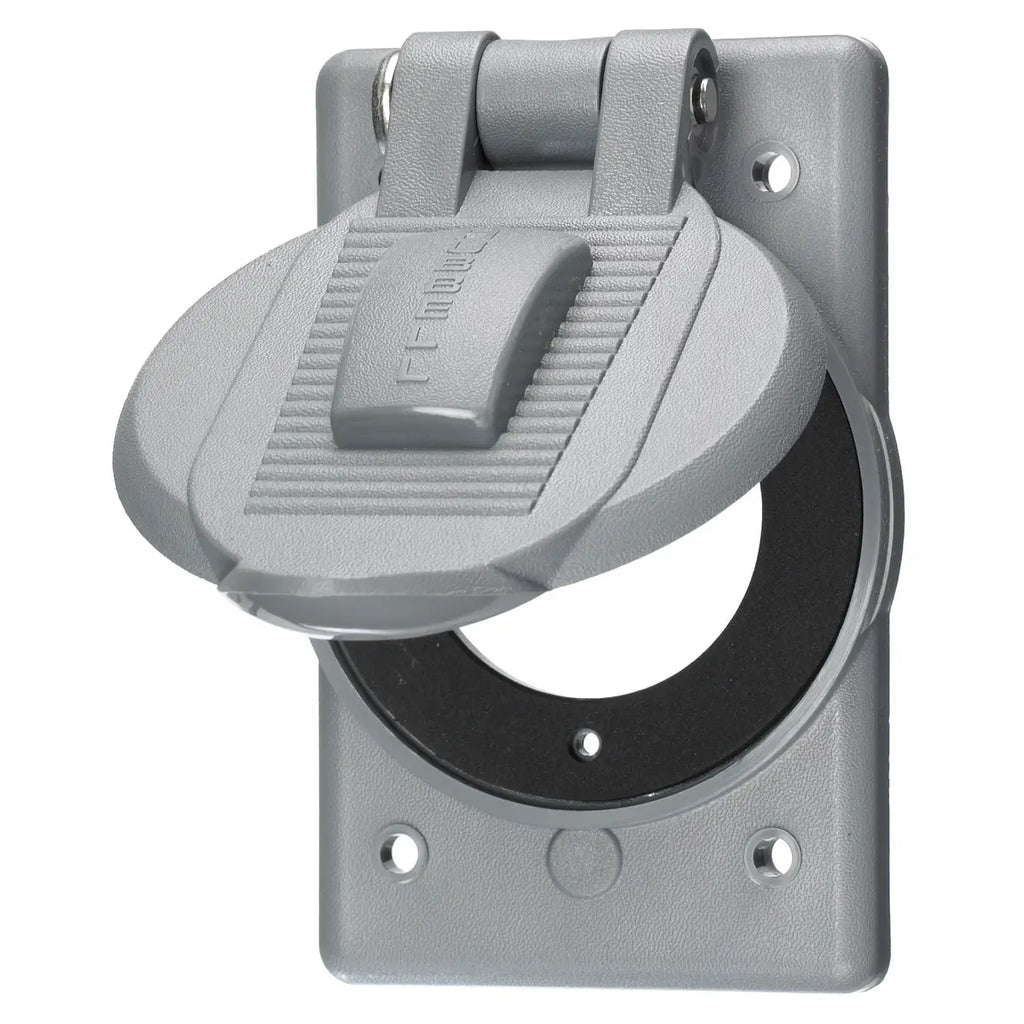

WP1 - Hubbell Wiring Device-Kellems 1-Gang Weatherproof Cover For Small Flanged Devices
Twist-Lock® Devices, Weatherproof Covers, 1-Gang, Accessories for 15 Amp 2 and 3 Wire Devices, 15A Nylon Flanged Receptacles and Inlets
- Gray thermoplastic, corrosion resistant
- Used with Single Receptacles with Face Dia. 1.40" (35.6)
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
WP1 |
| Color |
Gray |
| Construction |
Molded |
| EU RoHS Indicator |
Yes |
| Item Type |
Weatherproofing Covers |
| Knockouts |
None |
| Listings |
|
| Material |
Polyester, Thermoplastic Reinforced (RTP) |
| Material - Mounting Hardware |
Vertical FS/FD Mount - Mounting Screws |
| Number of Gang(s) |
1-Gang |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
-40°C to 85 °C |
| Series |
Accessory |
| Specifications |
- Gasket - Neoprene
- Hinge Pin - Stainless steel
- Material - RTP
- Spring - Stainless steel
|
| Style |
For Flanged Inlets & Flanged Receptacles |
| Type |
Covers |
| UPC |
783585392271 |
Dimensions
| Dimensions |
4.56 in x 2.84 in x 1.09 in |
| Display Size |
1-Gang |
| Height |
1.09 in |
| Length |
4.56 in |
| Width |
2.84 in |
| Weight |
0.3 lb |
Operational
| Operating Temperature |
-40°C to 85 °C
|
Configuration
| Knockouts |
None
|
| Number of Gang(s) |
1-Gang |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
1440 |
PRODUCT DATASHEET
Wiring WP1 Specification Sheet
