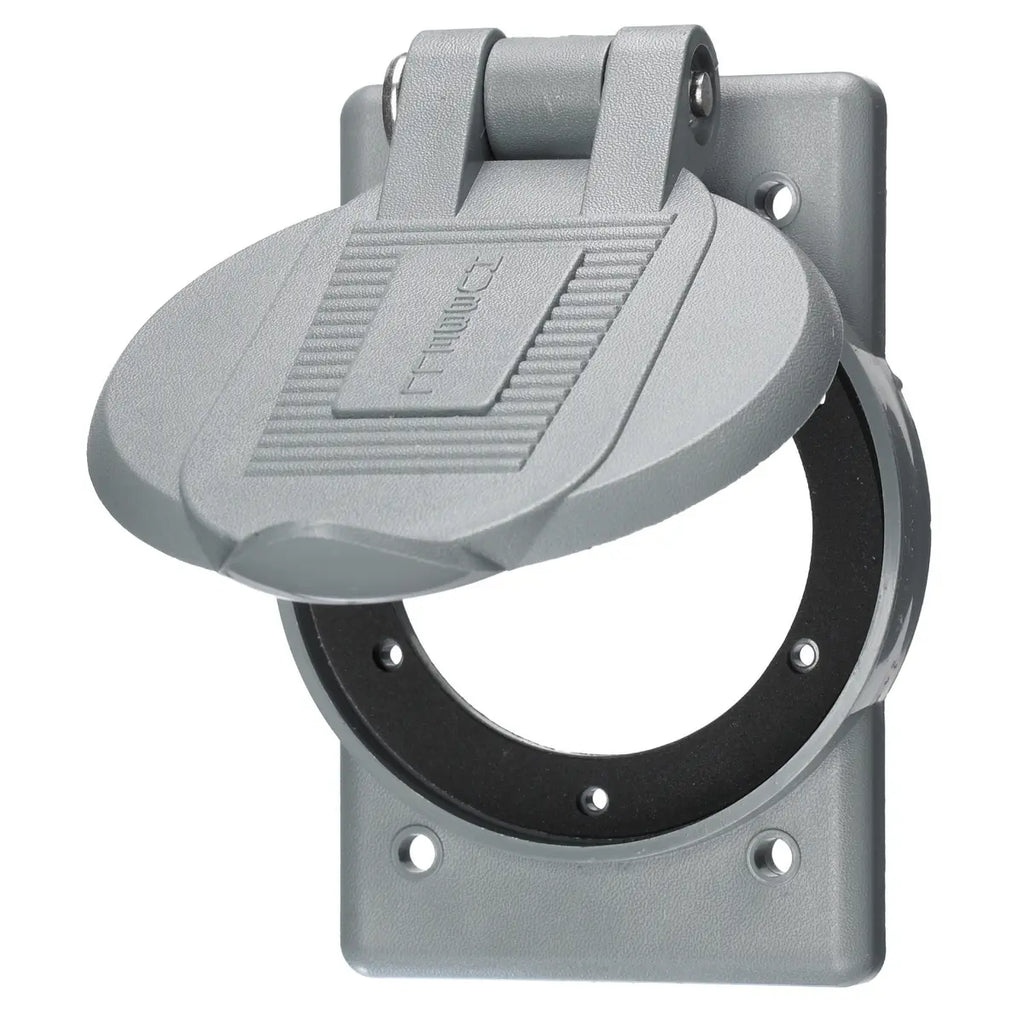

WP2 - Hubbell Wiring Device-Kellems 1-Gang Weatherproof Cover For Large Flanged Devices
Wallplates and Boxes, Weatherproof Covers, 1-Gang, For Large Flanged Devices, Standard Size, Reinforced thermoplastic polyester
- Gray thermoplastic, corrosion resistant
- Weatherproof Plate for Flanged Inlets and Flanged Receptacles
GENERAL SPECIFICATIONS
| Catalog Number |
WP2 |
| Color |
Gray |
| EU RoHS Indicator |
Yes |
| Material |
Polyester, Thermoplastic Reinforced (RTP) |
| Material - Mounting Hardware |
Vertical FS/FD Mount - Mounting Screws |
| Number of Gang(s) |
1-Gang |
| Number Of Outlets |
1-Device |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| Specifications |
- Gasket - Neoprene
- Hinge Pin - Stainless steel
- Material - RTP
- Spring - Stainless steel
|
| Style |
For Flanged Inlets & Flanged Receptacles |
| Type |
Covers |
| UPC |
783585392288 |
Dimensions
| Dimensions |
4.56 in x 1.29 in x 2.84 in |
| Height |
2.84 in |
| Length |
4.56 in |
| Width |
1.29 in |
| Weight |
0.3 lb |
Operational
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact
|
Configuration
| Number of Gang(s) |
1-Gang
|
| Number Of Outlets |
1-Device |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
1440 |
PRODUCT DATASHEET
Wiring WP2 Specification Sheet
