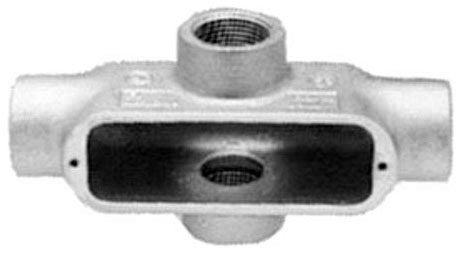

X50M - Appleton - 1/2 Inch X Conduit Body, Epoxy Coated Iron
Roll over image to zoom in Click on image to zoom
X50M - Appleton - 1/2 Inch X Conduit Body, Epoxy Coated Iron

X50M - Appleton - 1/2 Inch X Conduit Body, Epoxy Coated Iron

AppletonSKU: APPX50M
Price:
$21.29
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Specifications

Access Opening Side
Configuration X
Hub Location Cross
Number of Hubs 4
Hub Size 1/2 Inch
Size 2.69 Inch Width x 1.75 Inch Height
Installation Threaded
Material Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw)
Form Type Form 35
Approval UL 514A/B, CSA C22.2
Used On IMC/Rigid Conduit
Brand Name Unilets®, Form 35™
Additional Information Wire Size 1 AWG; Capacity 6 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1
Product Datasheet
X50M
