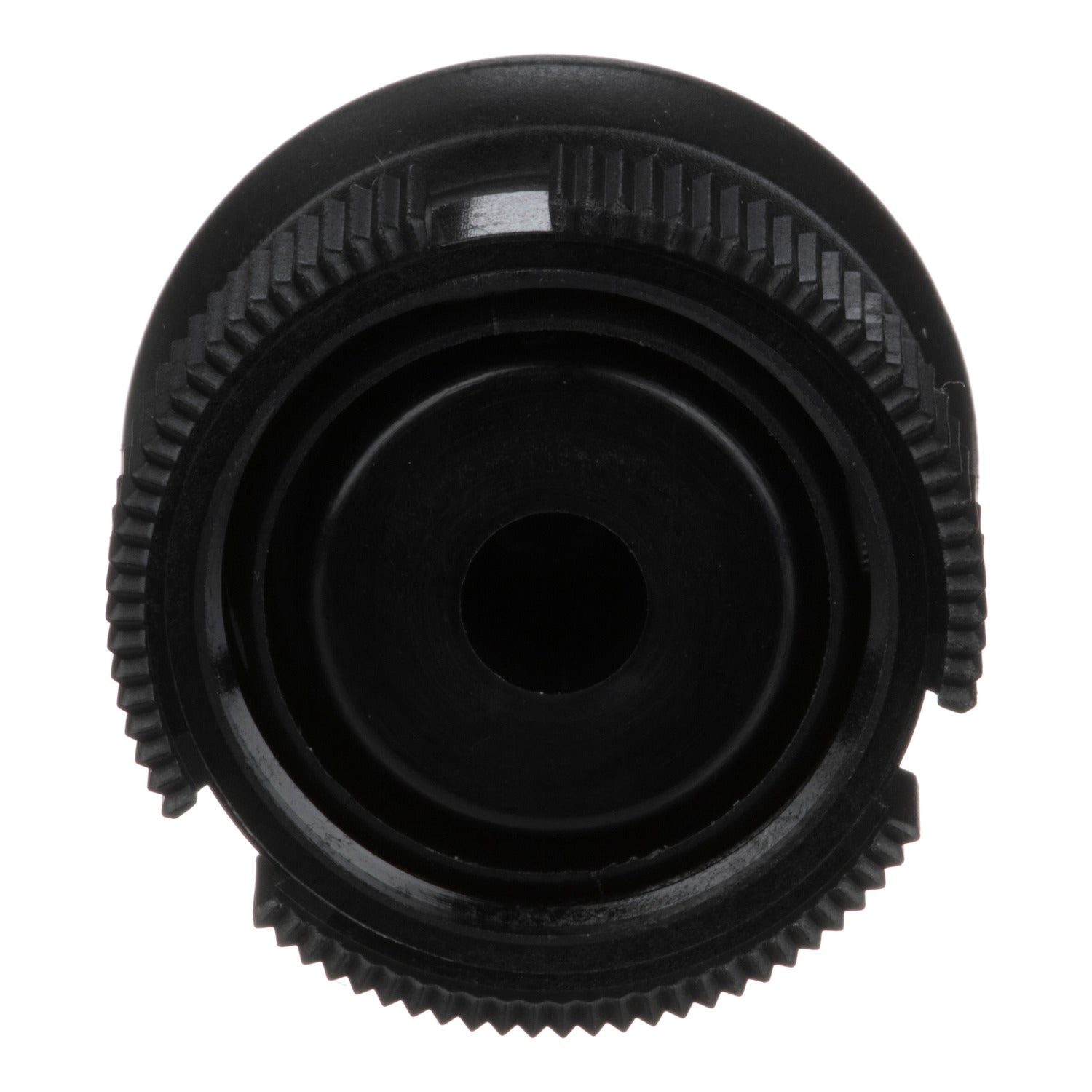

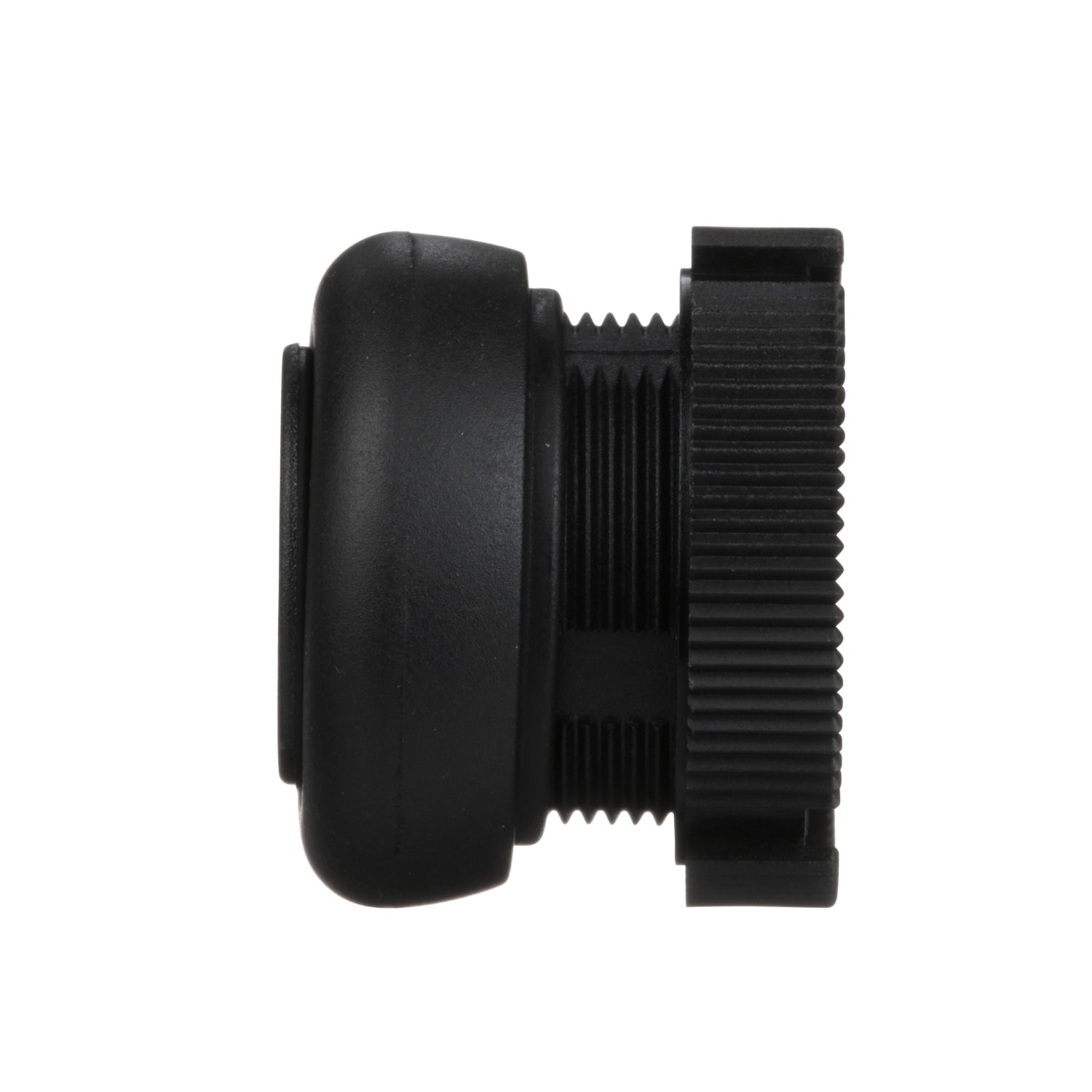

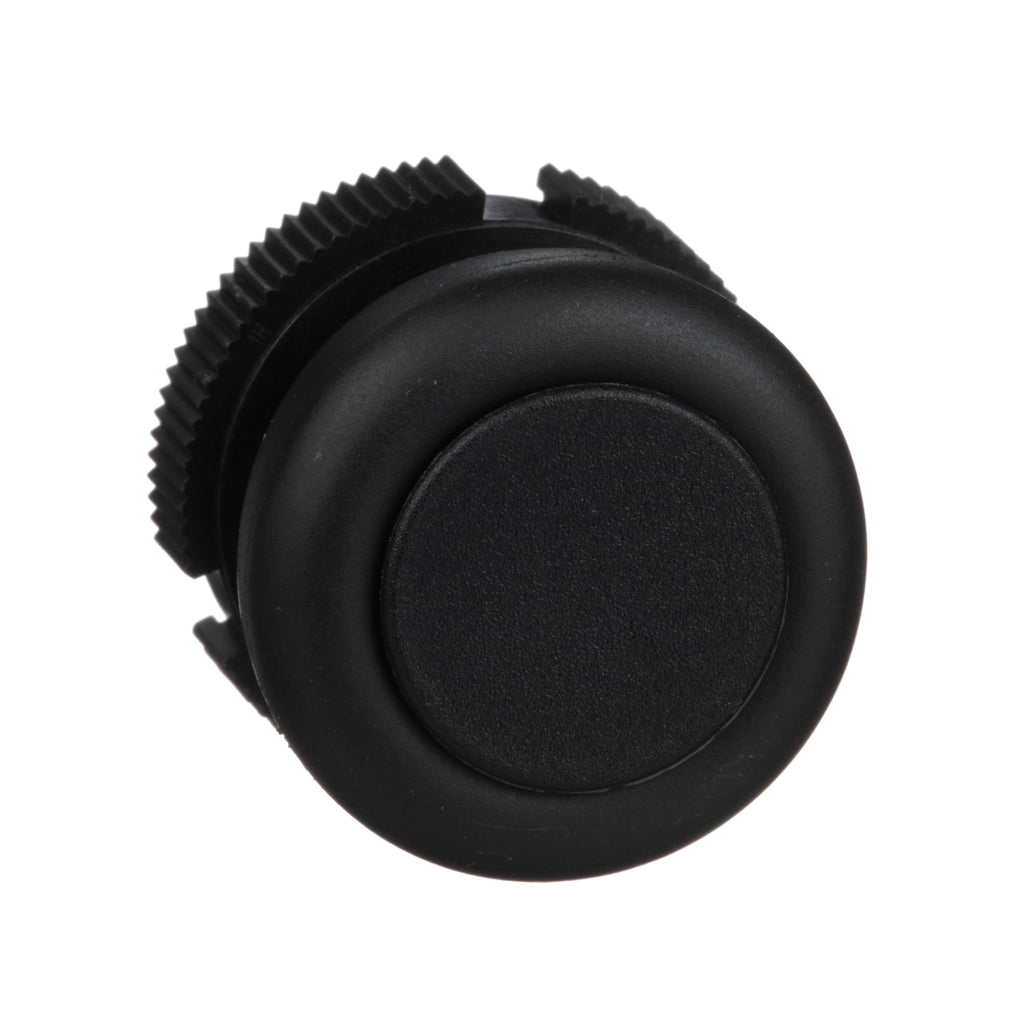

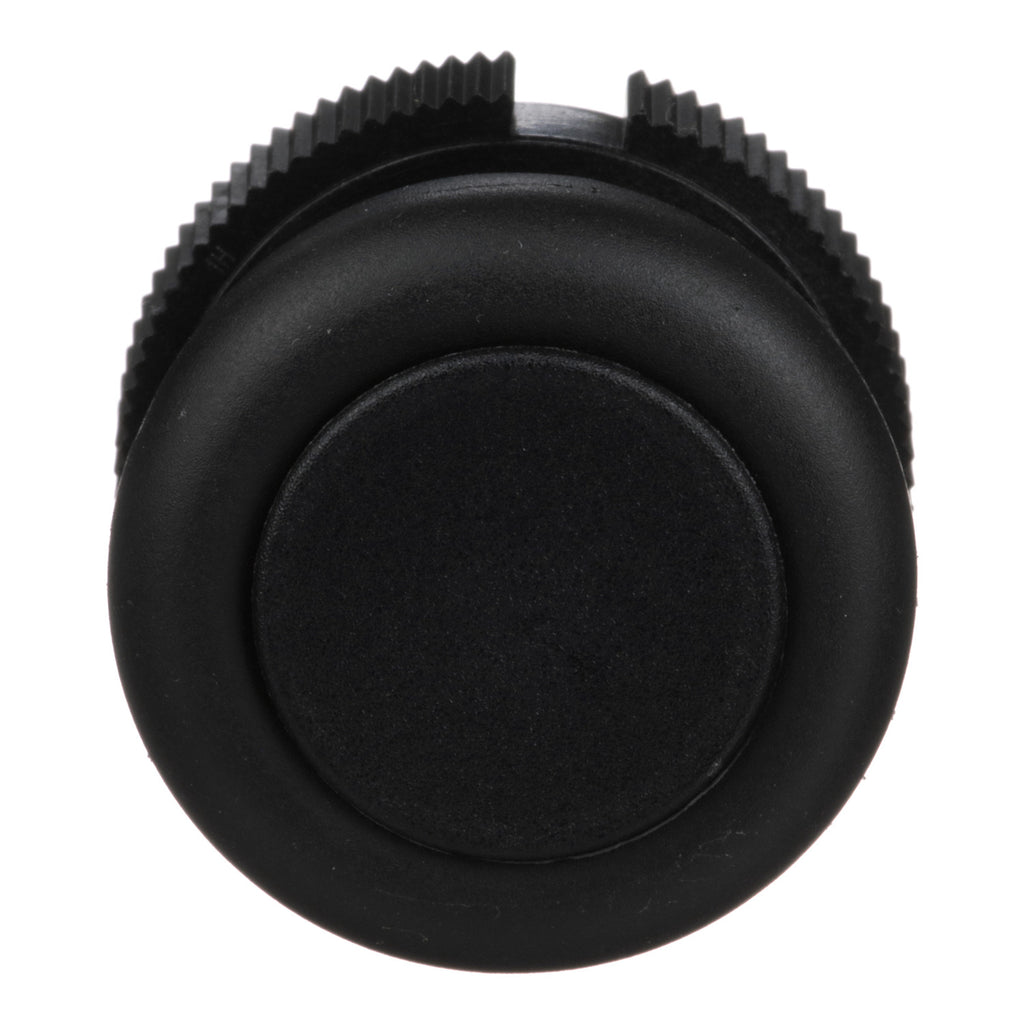

XACA9412 - Schneider Electric - Square D Harmony Round Head for Push Button Spring Return Black Booted
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
GENERAL SPECIFICATIONS
| Range of Product | Harmony XAC |
|---|---|
| Product or Component Type | Head for push-button |
| Component name | XACA |
| Marking | Unmarked |
|---|---|
| Operator additional information | Booted |
| Cap/operator or lens colour | Black |
| Product Compatibility | XACA.. |
| Mounting Location | Front of enclosure |
| Sale per indivisible quantity | 10 |
| Standards | CSA C22.2 No 14 UL 508 IEC 60204-32 IEC 60947-5-1 |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Net Weight | 0.02 lb(US) (0.01 kg) |
| Category | US10CS222473 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110645149 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.87 in (2.200 cm) |
| Package 1 Width | 1.18 in (3.000 cm) |
| Package 1 Length | 1.18 in (3.000 cm) |
| Package 1 Weight | 0.317 oz (9.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 1.57 in (4.000 cm) |
| Package 2 Width | 3.15 in (8.000 cm) |
| Package 2 Length | 4.72 in (12.000 cm) |
| Package 2 Weight | 3.351 oz (95.000 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 700 |
| Package 3 Height | 11.81 in (30.000 cm) |
| Package 3 Width | 11.81 in (30.000 cm) |
| Package 3 Length | 15.75 in (40.000 cm) |
| Package 3 Weight | 15.697 lb(US) (7.120 kg) |
