Description

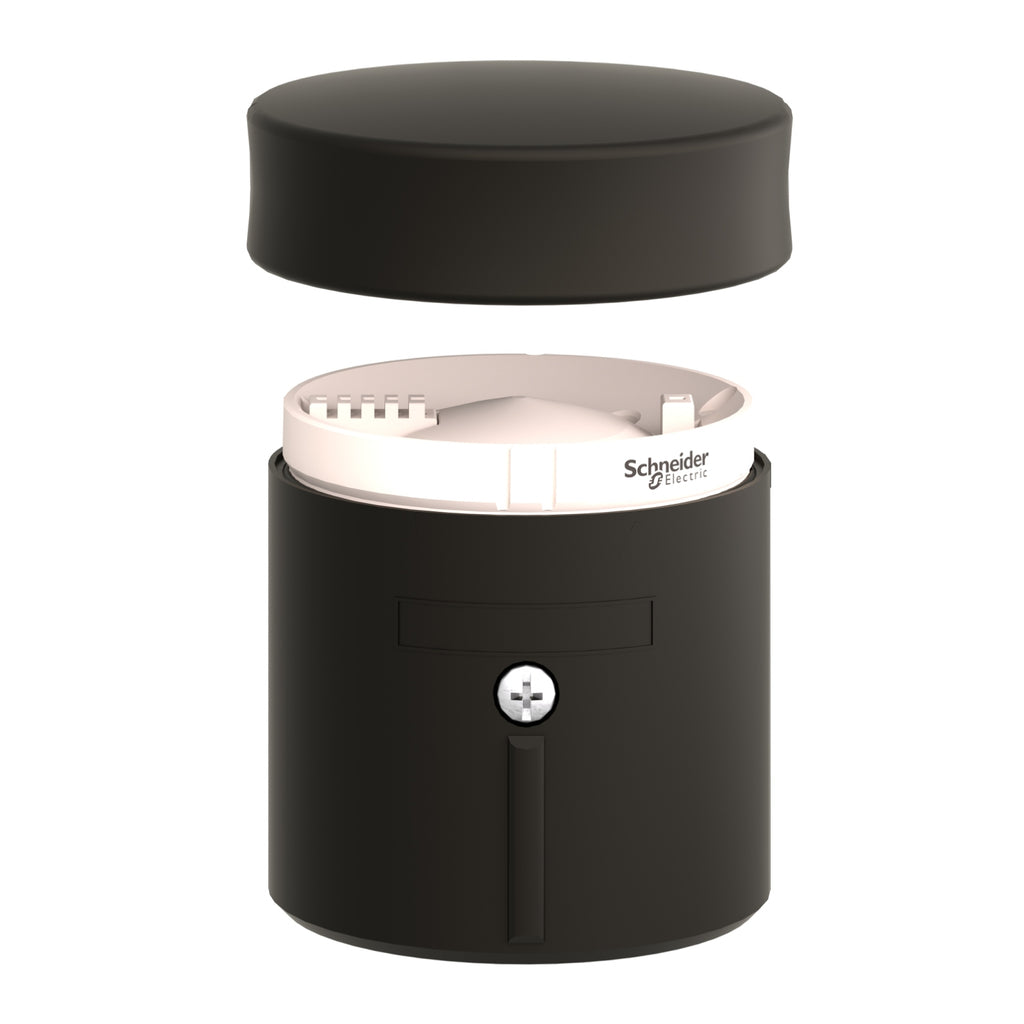

XVBC21 - Schneider Electric - 70mm Square D Indicating Bank
Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
GENERAL SPECIFICATIONS
| Range of Product | Harmony XVB Universal |
|---|---|
| Product or Component Type | Base unit with cover |
| Component name | XVBC |
| Material | Glass reinforced polyamide: base unit Polycarbonate: cover unit |
| Fixing Mode | Direct or tube fixing |
|---|---|
| Mounting diameter | 2.8 in (70 mm) |
| Product destination | Banks without flash discharge tube unit |
| Electrical connection | 1 connector standard input |
| cable entry | Bottom or side entry |
| Assembly style | Customer assembly, up to 5 units |
| Terminals description ISO n°1 | (GND)GROUND (COM-1)PW (COM-4)PW (COM-3)PW (COM-5)PW (COM-2)PW |
| Net Weight | 0.42 lb(US) (0.19 kg) |
| Product Certifications | CCC EAC CSA C22-2 No 14 UL 508 |
|---|---|
| Standards | IEC 60947-5-1 |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| NEMA degree of protection | Type 4X UL indoor) |
| Category | US100XV22611 |
|---|---|
| Discount Schedule | 00XV |
| GTIN | 3389110845020 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.346 in (8.500 cm) |
| Package 1 Width | 3.937 in (10.000 cm) |
| Package 1 Length | 3.740 in (9.500 cm) |
| Package weight(Lbs) | 7.266 oz (206.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 18.018 lb(US) (8.173 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 157.666 lb(US) (71.516 kg) |
PRODUCT DATASHEET
