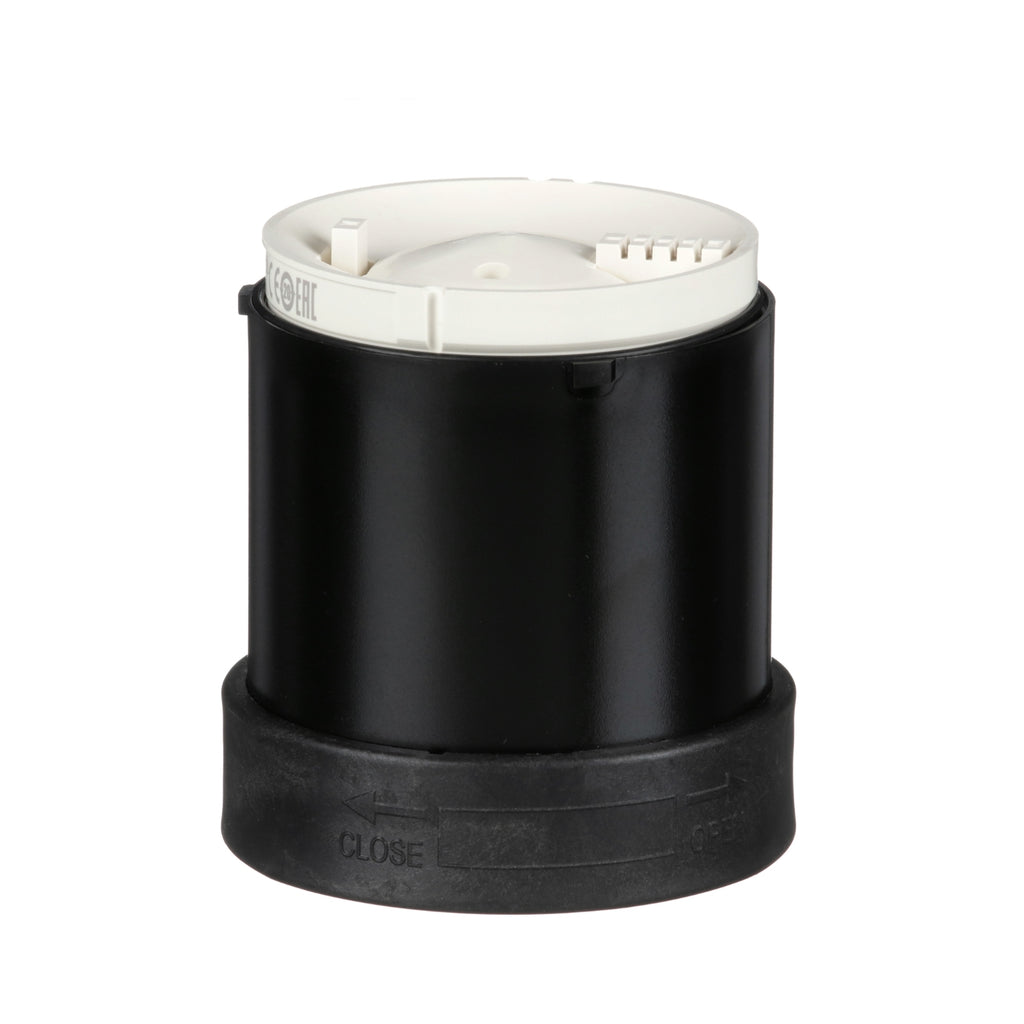

XVBC9B - Schneider Electric - 70mm 12 to 48 VAC/DC Square D Indicating Bank
Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
GENERAL SPECIFICATIONS
| Range of Product | Harmony XVB Universal |
|---|---|
| Product or Component Type | Indicator bank |
| Beacon or indicator bank unit type | Audible unit |
| Mounting diameter | 2.8 in (70 mm) |
| Component name | XVBC |
| Noise level | 70…90 dB 1 m |
| [Us] rated supply voltage | 12...48 V AC/DC |
| Signalling type | Continuous or intermittent buzzer |
|---|---|
| Assembly style | Customer assembly, up to 5 units |
| Connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V IEC 60947-1 |
| Nominal voltage limit | 0.85...1.1 Un IEC 60947-5-1 |
| Current Consumption | < 15 mA |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| Fundamental frequency | 2.8 kHz |
| CAD overall width | 2.8 in (70 mm) |
| CAD overall height | 2.5 in (63 mm) |
| CAD overall depth | 2.8 in (70 mm) |
| Product Weight | 0.37 lb(US) (0.17 kg) |
| Product Certifications | CCC EAC CSA C22-2 No 14 UL 508 |
|---|---|
| Standards | IEC 60947-5-1 |
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…122 °F (-25…50 °C) |
| Electrical shock protection class | Class I on support tube IEC 61140 Class II on base unit IEC 61140 |
| IP degree of protection | IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529 |
| NEMA degree of protection | Type 4X UL indoor) |
| Category | US100XV22611 |
|---|---|
| Discount Schedule | 00XV |
| GTIN | 3389110845969 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.071 in (7.800 cm) |
| Package 1 Width | 3.150 in (8.000 cm) |
| Package 1 Length | 3.780 in (9.600 cm) |
| Package weight(Lbs) | 5.785 oz (164.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 14.506 lb(US) (6.580 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 132.904 lb(US) (60.284 kg) |
PRODUCT DATASHEET
