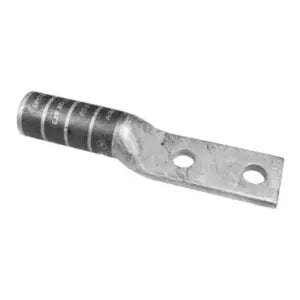

YA1C2TC38 - Burndy - 3/8" Stud Long Barrel Compression Terminal
1 AWG CU, Two Hole, 3/8 Stud Size, 1 inch Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Green Color Code, 11 or 375 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
General
| Field | Value |
| Application | Wire Termination |
| Catalog Number | YA1C2TC38 |
| Color Code | Green |
| Connector Type | LONG BARREL |
| Die Index | 11 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | HYLUG |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810019795 |
| UPC 14 Digit GTIN | 781810019795 |
DIMENSIONS
| Dimension - B Length fraction | 1-3/8 in |
| Dimension - B Length inch | 1.38 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - Bolt Size inch | 0.38 |
| Dimension - D inch | 1.84 in |
| Dimension - Hole Size fraction | 3/8 |
| Dimension - Hole Size inch | 0.41 |
| Dimension - Hole Size mm | 10.4 mm |
| Dimension - L Length Overall mm | 91 mm |
| Dimension - Length Overall inch | 3.59 in |
| Dimension - N inch | 0.41 in |
| Dimension - Outside Diameter inch | 0.46 in |
| Dimension - Pad Width inch | 0.67 in |
| Dimension - Strip Length inch | 1-07/16 |
| Dimension - Stud Size fraction | 3/8 |
| Dimension - Stud Size inch | 3/8 |
| Dimension - Z (inch) | 0.43 in |
| Physical Attribute - Tongue Angle | Straigh |
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
| Conductor - Copper Solid Size | 1 AWG |
| Conductor - Copper Solid Size Range | 1 AWG |
| Conductor - Copper Str Navy Size | 75 (37) Navy |
| Conductor - Copper Str Navy Size Range | 75 (37) Navy |
| Conductor - Copper Str Size | 1 AWG |
| Conductor - Copper Str Size Range | 1 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 1 AWG |
| Conductor Type | CODE |
Operational
| Temperature Rating | 194 |
Configuration
| Connector Type | LONG BARREL |
| Physical Attribute - Number of Holes | 2 |
Logistics
| Carton Quantity | 20 |
| Minimum Pack Quantity | 1 |
