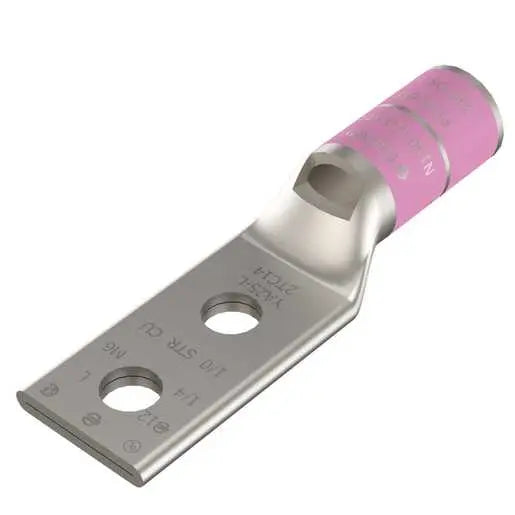

YA252LN - Burndy - 2-Hole 1/2" Stud 1-3/4" Spacing Compression Terminal
1/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Pinnk Color Code, 12 or 348 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
GENERAL SPECIFICATIONS
| Application | Wire Termination |
| Catalog Number | YA252LN |
| Color Code | Pink |
| Connector Type | STANDARD BARREL |
| Die Index | 12 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style |
|
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810502273 |
| UPC 14 Digit GTIN | 00781810502273 |
Dimensions
| Dimension - B Length fraction | 7/8 in |
| Dimension - B Length inch | 0.88 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Bolt Size inch | 0.5 |
| Dimension - D inch | 1.27 in |
| Dimension - Hole Size fraction | 1/2 |
| Dimension - Hole Size inch | 0.56 |
| Dimension - Hole Size mm | 14 mm |
| Dimension - L Length Overall mm | 109 mm |
| Dimension - Length Overall inch | 4.29 in |
| Dimension - N inch | 0.63 in |
| Dimension - Outside Diameter inch | 0.51 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Strip Length inch | 15/16 |
| Dimension - Stud Size fraction | 1/2 |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Z (inch) | 0.64 in |
| Physical Attribute - Tongue Angle | Straight |
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
| Conductor - Copper Str Navy Size | 100 (61) Navy |
| Conductor - Copper Str Navy Size Range | 100 (61) Navy |
| Conductor - Copper Str Size | 1/0 AWG |
| Conductor - Copper Str Size Range | 1/0 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 1/0 AWG |
| Conductor Type | CODE |
Configuration
| Connector Type | STANDARD BARREL |
| Physical Attribute - Number of Holes | 2 |
Logistics
| Carton Quantity | 10 |
| Minimum Pack Quantity | 1 |
