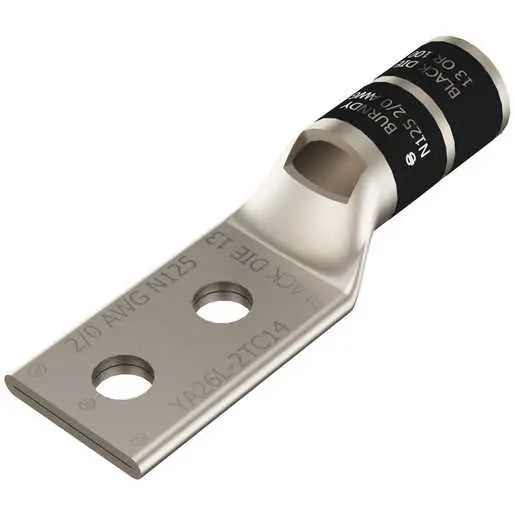

YA26L2TC38 - Burndy - 2-Hole 3/8" Stud 1" Spacing Standard Barrel Compression Terminal
2/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Black Color Code, 13 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
GENERAL SPECIFICATIONS
| Application | Wire Termination |
| Catalog Number | YA26L2TC38 |
| Color Code | Black |
| Connector Type | STANDARD BARREL |
| Die Index | 13 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810018156 |
| UPC 14 Digit GTIN | 00781810018156 |
Dimensions
| Dimension - B Length fraction | 15/16 in |
| Dimension - B Length inch | 0.94 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - Bolt Size inch | 0.38 |
| Dimension - D inch | 1.83 in |
| Dimension - Hole Size fraction | 3/8 |
| Dimension - Hole Size inch | 0.41 |
| Dimension - Hole Size mm | 10.4 mm |
| Dimension - L Length Overall mm | 81 mm |
| Dimension - Length Overall inch | 3.20 in |
| Dimension - N inch | 0.41 in |
| Dimension - Outside Diameter inch | 0.56 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Strip Length inch | 1 in |
| Dimension - Stud Size fraction | 3/8 |
| Dimension - Stud Size inch | 3/8 |
| Dimension - Z (inch) | 0.42 in |
| Physical Attribute - Tongue Angle | Straight |
Electrical Ratings
Conductor Related
| Conductor - Copper Str Navy Size | 100 (61) Navy |
| Conductor - Copper Str Navy Size Range | 100 (61) Navy |
| Conductor - Copper Str Size | 2/0 AWG |
| Conductor - Copper Str Size Range | 2/0 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 2/0 AWG |
| Conductor Type | CODE |
Configuration
| Connector Type | STANDARD BARREL |
| Physical Attribute - Number of Holes | 2 |
Logistics
| Carton Quantity | 10 |
| Minimum Pack Quantity | 1 |
