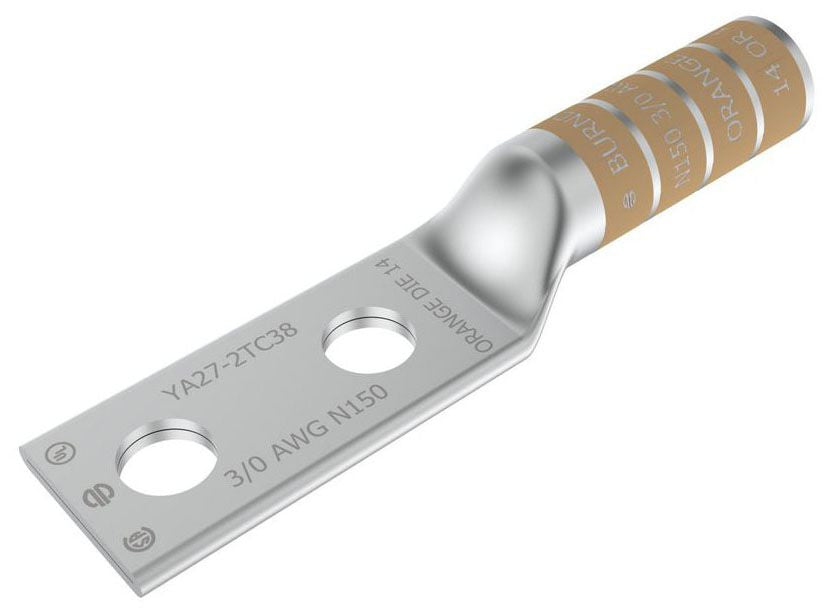

YA27TC38 - Burndy - 2 Hole 3/8" 3/0 AWG Copper Compression Lug
YA27TC38 is a Burndy 3/0 AWG copper compression lug designed for secure, high-current electrical connections.
This two-hole lug features a 3/8" stud size, 1" hole spacing, long barrel with internal chamfer, and tin plating for corrosion resistance. It is rated for use up to 35,000 volts and is suitable for a wide range of industrial and utility applications. The orange color code and 14 die index ensure easy identification and compatibility with standard tooling.
GENERAL SPECIFICATIONS
|
Voltage Rating
|
600 V to 35 KV |
| Conductor Material | Copper |
|
Conductor Size
|
3/0 AWG Solid/Stranded (Code) |
|
Barrel Type
|
Long, Standard, Straight |
|
Barrel Length
|
1.5 Inch |
|
Pad Size
|
0.9 Inch W x 0.12 Inch Thk |
|
Number of Pad Holes
|
2 |
|
Pad Hole Spacing
|
1 Inch |
|
Stud Size
|
3/8 Inch |
| Color | Orange |
|
Die Index
|
14 |
| Material | Electro-Tin Plated Copper |
|
Overall Length
|
3.82 Inch |
| Approval | UL 468A/468B, CSA |
|
Brand Name
|
HYLUG™
|
|
Additional Information
|
RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-9/16 Inch; Cable Entry Type Beveled Entry, Chamfered
|
|
Model
|
YA-2TC
|
