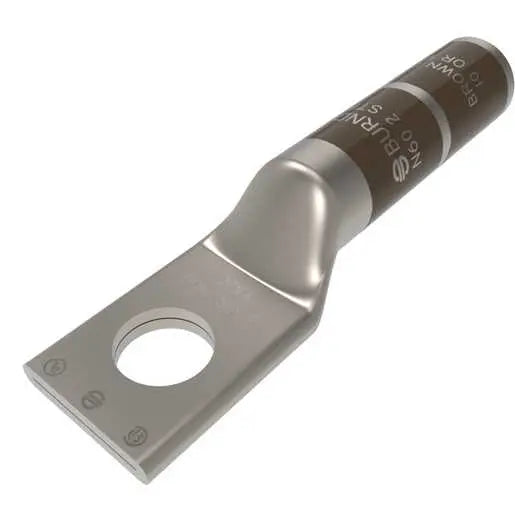

YA2C - Burndy - 5/16" Stud 1-Hole Long Barrel Compression Terminal
2 AWG CU, One Hole, 5/16 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, BROWN Color Code, 10 Die Index
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
GENERAL SPECIFICATIONS
| Application |
Wire Termination |
| Catalog Number |
YA2C |
| Color Code |
Brown |
| Connector Type |
LONG BARREL |
| Die Index |
10 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
Chamfered
|
| Feature - Barrel Type |
Long |
| Finish Type |
Tin-Plated |
| Material |
COPPER |
| Physical Attribute - Number of Holes |
1 |
| Physical Attribute - Tongue Type |
Standard |
| Plated |
Y |
| Plating Type |
|
| Sub Brand |
HYLUG |
| Temperature Rating |
194 |
| Trade Name |
HYLUG™ |
| Type |
Long Barrel, Tin Plated |
| UPC |
781810500651 |
| UPC 14 Digit GTIN |
00781810500651
|
Dimensions
| Dimension - B Length inch |
1.25 in |
| Dimension - Bolt Hole Size inch |
0.33 in |
| Dimension - Bolt Size fraction |
5/16 |
| Dimension - Bolt Size inch |
0.3125 |
| Dimension - D inch |
0.59 in |
| Dimension - Hole Size fraction |
5/16 |
| Dimension - Hole Size inch |
0.38 |
| Dimension - Hole Size mm |
10 mm |
| Dimension - L Length Overall mm |
58 mm |
| Dimension - Length Overall inch |
2.29 in |
| Dimension - N inch |
0.34 in |
| Dimension - Outside Diameter inch |
0.42 in |
| Dimension - Pad Width inch |
0.60 in |
| Dimension - Strip Length inch |
1-5/16 |
| Dimension - Stud Size fraction |
5/16 |
| Dimension - Stud Size inch |
5/16 |
| Dimension - Z (inch) |
0.36 in |
| Physical Attribute - Tongue Angle |
Straight |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper Str Size |
2 AWG |
| Conductor - Copper Str Size Range |
2 AWG |
| Conductor - Material |
COPPER |
| Conductor Size |
2 AWG |
| Conductor Type |
CODE |
Operational
Configuration
| Connector Type |
Long Barrel |
| Physical Attribute - Number of Holes |
1 |
Logistics
| Carton Quantity |
25 |
| Minimum Pack Quantity |
1 |
PRODUCT DATASHEET
YA2C
