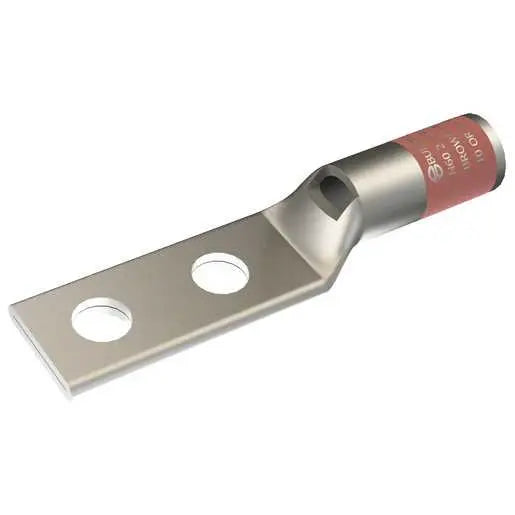

YA2C2LN - Burndy - 1/2" Stud 2-Hole Compression Terminal
2 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90 degC, Up to 35kV, Brown Color Code, 10 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
GENERAL SPECIFICATIONS
| Application |
Wire Termination |
| Catalog Number |
YA2C2LN |
| Color Code |
Brown |
| Connector Type |
STANDARD BARREL |
| Die Index |
10 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
Chamfered
|
| Feature - Barrel Type |
Standard |
| Finish Type |
Tin-Plated |
| Material |
COPPER |
| Physical Attribute - Number of Holes |
2 |
| Physical Attribute - Tongue Type |
Standard |
| Plated |
Y |
| Plating Type |
Tin - Electro Plated |
| Sub Brand |
HYLUG |
| Trade Name |
HYLUG(TM) |
| Type |
Standard Barrel, Tin Plated |
| UPC |
781810500767 |
| UPC 14 Digit GTIN |
00781810500767
|
Dimensions
| Bolt Size |
1/2 in |
| Dimension - B Length fraction |
7/8 in |
| Dimension - B Length inch |
0.88 in |
| Dimension - Bolt Hole Size inch |
0.52 in |
| Dimension - Bolt Size fraction |
1/2 |
| Dimension - Bolt Size inch |
0.5 |
| Dimension - D inch |
3.02 in |
| Dimension - Hole Size fraction |
1/2 |
| Dimension - Hole Size inch |
0.56 |
| Dimension - Hole Size mm |
14 mm |
| Dimension - L Length Overall mm |
108 mm |
| Dimension - Length Overall inch |
4.27 in |
| Dimension - N inch |
0.63 in |
| Dimension - Outside Diameter inch |
0.42 in |
| Dimension - Pad Width inch |
0.83in |
| Dimension - Strip Length inch |
15/16 |
| Dimension - Stud Size fraction |
1/2 |
| Dimension - Stud Size inch |
1/2 |
| Dimension - Z (inch) |
0.64 in |
| Length |
4.27 in |
| Outside Diameter |
0.42 in |
| Physical Attribute - Tongue Angle |
Straight |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper DLO Size Range |
N/A |
| Conductor - Copper Str Navy Size |
60 (37) Navy |
| Conductor - Copper Str Navy Size Range |
60 (37) Navy |
| Conductor - Copper Str Size |
2 AWG |
| Conductor - Copper Str Size Range |
2 AWG |
| Conductor - Material |
COPPER |
| Conductor Size |
2 AWG |
| Conductor Type |
CODE |
Configuration
| Connector Type |
STANDARD BARREL |
| Physical Attribute - Number of Holes |
2 |
Logistics
| Carton Quantity |
25 |
| Minimum Pack Quantity |
1 |
PRODUCT DATASHEET
YA2C2LN
