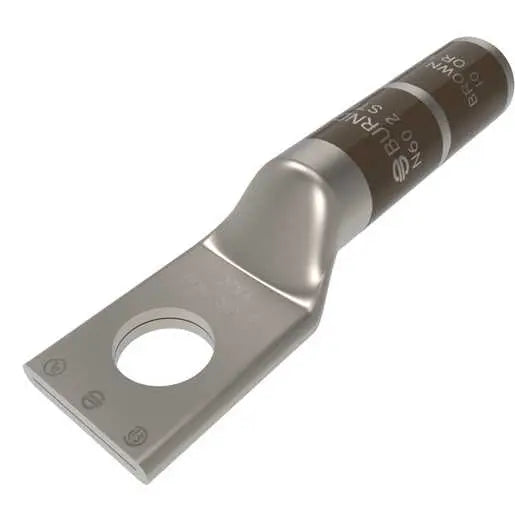

YA2CN - Burndy - 1/2" Stud 1-Hole Long Barrel Compression Terminal
2 AWG CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, BROWN Color Code, 10 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
GENERAL SPECIFICATIONS
| Application | Wire Termination |
| Catalog Number | YA2CN |
| Color Code | Brown |
| Connector Type | LONG BARREL |
| Die Index | 10 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style |
Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Plating Type | Tin |
| Sub Brand | HYLUG |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810080207 |
| UPC 14 Digit GTIN | 00781810080207 |
Dimensions
| Dimension - B Length inch | 1.25 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Bolt Size inch | 0.5 |
| Dimension - D inch | 1.27 in |
| Dimension - Hole Size fraction | 1/2 |
| Dimension - Hole Size inch | 0.56 |
| Dimension - L Length Overall mm | 73 mm |
| Dimension - Length Overall inch | 2.88 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Outside Diameter inch | 0.42 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Strip Length inch | 1-5/16 |
| Dimension - Stud Size fraction | 1/2 |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Z (inch) | 0.64 in |
| Physical Attribute - Tongue Angle | Straight |
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper Str Navy Size | 60 (37) Navy |
| Conductor - Copper Str Navy Size Range | 60 (37) Navy |
| Conductor - Copper Str Size | 2 AWG |
| Conductor - Copper Str Size Range | 2 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 2 AWG |
| Conductor Type | CODE |
Operational
|
Temperature Rating |
194 |
Configuration
| Connector Type | LONG BARREL |
| Physical Attribute - Number of Holes | 1 |
Logistics
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
