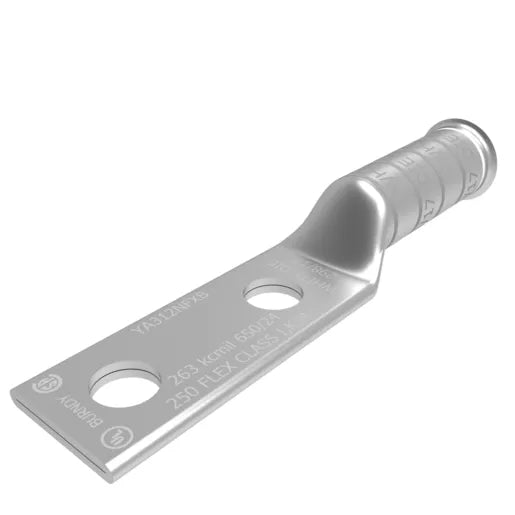

YA312NFXB - Burndy - 2-Hole, 1/2" Stud 1-3/4" Spacing Compression Terminal
250 kcmil I, K, M, 262 DLO CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90 degC, Up to 35kV, White Color Code, 17 or 298 Die Index.
- Barrel designed with an internal chamfer at the wire entry for smooth insertion of wire, preventing possible damage to the strands
- Long barrel length allows for an increased number of crimps, increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
GENERAL SPECIFICATIONS
| Application |
Wire Termination |
| Catalog Number |
YA312NFXB |
| Color Code |
White |
| Connector Type |
LONG BARREL |
| Die Index |
17 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
Belled |
| Feature - Barrel Type |
Long |
| Finish Type |
Tin-Plated |
| Material |
COPPER |
| Physical Attribute - Number of Holes |
2 |
| Physical Attribute - Tongue Type |
Standard |
| Plated |
yes |
| Plating Type |
Tin Plated |
| Sub Brand |
HYLUG |
| Trade Name |
HYLUG(TM) |
| Type |
Long Barrel, Tin Plated |
| UPC |
781810039908 |
| UPC 14 Digit GTIN |
00781810039908 |
Dimensions
| Dimension - B Length fraction |
2-3/16 in |
| Dimension - B Length inch |
2.18 in |
| Dimension - Bolt Hole Size inch |
0.56 in |
| Dimension - Bolt Size fraction |
1/2 |
| Dimension - Bolt Size inch |
0.5 |
| Dimension - Hole Size fraction |
1/2 |
| Dimension - Hole Size inch |
0.56 |
| Dimension - Hole Size mm |
14 mm |
| Dimension - L Length Overall mm |
149mm |
| Dimension - Length Overall inch |
5.85 in |
| Dimension - N inch |
0.62 in |
| Dimension - Outside Diameter inch |
0.88 in |
| Dimension - Pad Width inch |
1.29 in |
| Dimension - Strip Length inch |
2-1/4 in |
| Dimension - Stud Size fraction |
1/2 |
| Dimension - Stud Size inch |
1/2 |
| Dimension - Thread Size |
1/2 |
| Dimension - Z (inch) |
0.64 in |
| Physical Attribute - Tongue Angle |
Straight |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper DLO Size |
262 KCMIL |
| Conductor - Copper DLO Size Range |
4/0 AWG |
| Conductor - Copper Flex G Size |
250 kcmil |
| Conductor - Copper Flex G Size Range |
4/0 AWG |
| Conductor - Copper Flex H Size |
250 kcmil |
| Conductor - Copper Flex H Size Range |
4/0 AWG |
| Conductor - Copper Flex I Size |
250 KCMIL |
| Conductor - Copper Flex I Size Range |
4/0 AWG |
| Conductor - Copper Flex K Size |
250 KCMIL |
| Conductor - Copper Flex K Size Range |
4/0 AWG |
| Conductor - Copper Flex M Size |
250 KCMIL |
| Conductor - Copper Flex M Size Range |
250 |
| Conductor - Copper Str Size |
250 KCMIL |
| Conductor - Copper Str Size Range |
250 kcmil |
| Conductor - Material |
COPPER |
| Conductor Size |
250 KCMIL |
| Conductor Type |
FLEX |
| Wire Size |
250 KCMIL |
Configuration
| Connector Type |
LONG BARREL |
| Physical Attribute - Number of Holes |
2 |
Logistics
| Carton Quantity |
10 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
4640 |
