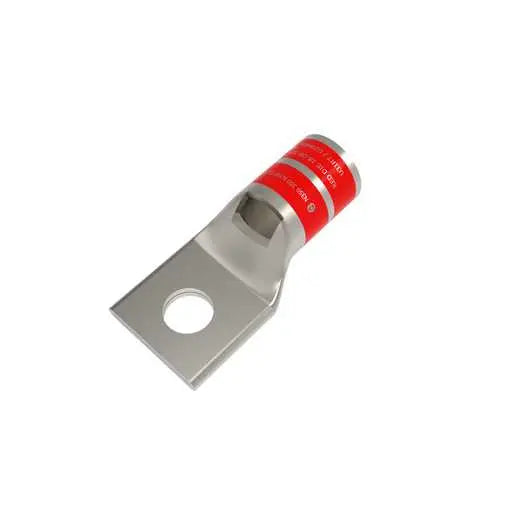

YA31L - Burndy - 1/2" Stud 1-Hole Standard Barrel Compression Terminal
350 kcmil CU, One Hole, 1/2 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90° Up to 35kV, RED Color Code, 18 or 324 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
GENERAL SPECIFICATIONS
| Application |
Wire Termination |
| Catalog Number |
YA31L |
| Color Code |
Red |
| Die Index |
18 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
|
| Feature - Barrel Type |
Standard |
| Material |
COPPER |
| Physical Attribute - Number of Holes |
1 |
| Physical Attribute - Tongue Type |
Standard |
| Sub Brand |
HYLUG |
| Trade Name |
HYLUG™ |
| Type |
Standard Barrel, Tin Plated |
| UPC |
781810505359
|
| UPC 14 Digit GTIN |
00781810505359
|
Dimensions
| Dimension - B Length fraction |
1-1/16 in |
| Dimension - Bolt Hole Size inch |
0.52 in |
| Dimension - Bolt Size fraction |
1/2 |
| Dimension - Bolt Size inch |
0.5 |
| Dimension - D inch |
1.08 in |
| Dimension - Hole Size mm |
13 mm |
| Dimension - N inch |
0.53 in |
| Dimension - Outside Diameter inch |
0.88 in |
| Dimension - Pad Width inch |
1.29 in |
| Dimension - Strip Length inch |
1-1/8 |
| Dimension - Stud Size fraction |
1/2 |
| Dimension - Stud Size inch |
1/2 |
| Dimension - Z (inch) |
0.55 in |
| Physical Attribute - Tongue Angle |
Straight |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper DLO Size Range |
N/A |
| Conductor - Copper Str Navy Size |
350 (91) Navy |
| Conductor - Copper Str Navy Size Range |
350 (91) Navy |
| Conductor - Copper Str Size Range |
350 kcmil |
| Conductor - Material |
COPPER |
| Conductor Type |
CODE |
Logistics
| Carton Quantity |
10 |
| Minimum Pack Quantity |
1 |
PRODUCT DATASHEET
YA31L
