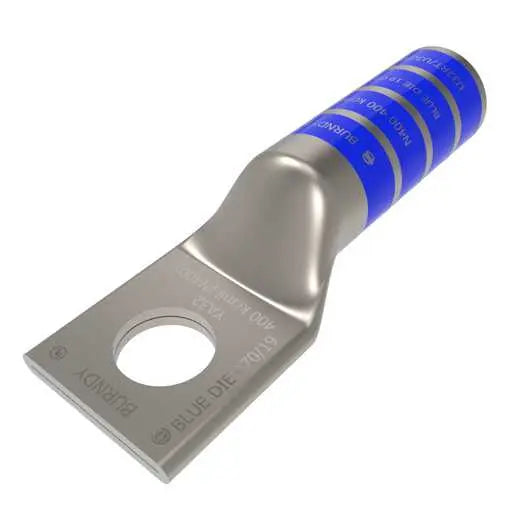

YA32 - Burndy - 5/8" Stud 1-Hole Long Barrel Compression Terminal
400 kcmil CU, One Hole, 5/8 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV,BLUE Color Code, 19 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
GENERAL SPECIFICATIONS
|
Application
|
Wire Termination
|
|
Catalog Number
|
YA32
|
|
Color Code
|
Blue
|
|
Connector Type
|
LONG BARREL |
|
Die Index
|
19
|
|
EU RoHS Indicator
|
Yes
|
|
Feature - Barrel Style
|
Chamfered
|
|
Feature - Barrel Type
|
Long
|
|
Finish Type
|
Tin Plated
|
|
Material
|
COPPER
|
|
Physical Attribute - Number of Holes
|
1
|
|
Physical Attribute - Tongue Type
|
Standard
|
|
Plated
|
Y
|
|
Plating Type
|
Tin Electro Plated
|
|
Sub Brand
|
HYLUG
|
|
Trade Name
|
HYLUG™
|
|
Type
|
Long Barrel, Tin Plated
|
|
UPC
|
781810505403 |
|
UPC 14 Digit GTIN
|
00781810505403
|
Dimensions
| Dimension - B Length fraction | 2-1/8 in |
| Dimension - B Length inch | 2.12 in |
| Dimension - Bolt Hole Size inch | 0.69 in |
| Dimension - Bolt Size fraction | 5/8 |
| Dimension - Bolt Size inch | 0.63 |
| Dimension - Hole Size fraction | 5/8 |
| Dimension - Hole Size inch | 0.69 |
| Dimension - Hole Size mm | 17.5 mm |
| Dimension - L Length Overall mm | 105 mm |
| Dimension - Length Overall inch |
4.15 in |
| Dimension - N inch | 0.66 in |
| Dimension - Outside Diameter inch | 0.95 in |
| Dimension - Pad Width inch | 1.40 in |
| Dimension - Strip Length inch | 2-3/16 |
| Dimension - Stud Size fraction | 5/8 |
| Dimension - Stud Size inch | 5/8 |
| Dimension - Z (inch) | 0.67 in |
| Physical Attribute - Tongue Angle | Straight |
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper Str Navy Size | 400 (127) Navy |
| Conductor - Copper Str Size | 400 KCMIL |
| Conductor - Copper Str Size Range | 400 kcmil |
| Conductor - Material | COPPER |
| Conductor Size | 400 KCMIL |
| Conductor Type | CODE |
Configuration
| Connector Type | LONG BARREL |
| Physical Attribute - Number of Holes | 1 |
Logistics
| Carton Quantity | 6 |
| Minimum Pack Quantity | 1 |
