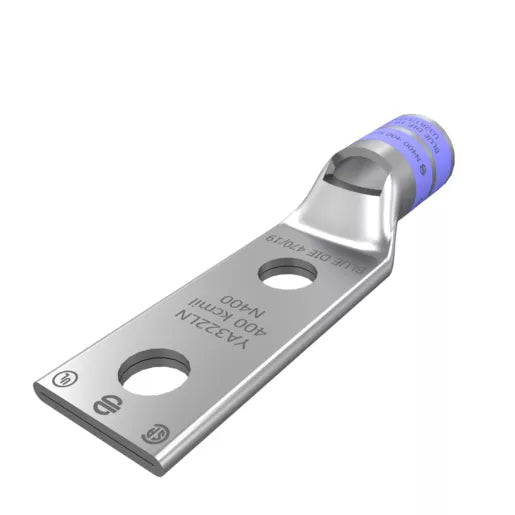

YA322LN - Burndy - 1/2" Stud 2-Hole 1-3/4" Spacing Standard Barrel Compression Terminal
400 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Blue Color Code, 19 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
GENERAL SPECIFICATIONS
| Application |
Wire Termination |
| Catalog Number |
YA322LN |
| Color Code |
Blue |
| Connector Type |
STANDARD BARREL |
| Die Index |
19 |
| EU RoHS Indicator |
Contact Manufacturer |
| Feature - Barrel Style |
|
| Feature - Barrel Type |
Standard |
| Finish Type |
Tin-Plated |
| Material |
COPPER |
| Physical Attribute - Number of Holes |
2 |
| Physical Attribute - Tongue Type |
Standard |
| Plated |
Y |
| Plating Type |
Tin Electro Plated |
| Sub Brand |
HYLUG |
| Trade Name |
HYLUG™ |
| Type |
Standard Barrel, Tin Plated |
| UPC |
781810505526 |
| UPC 14 Digit GTIN |
00781810505526 |
Dimensions
| Dimension - B Length fraction |
1-3/16 in |
| Dimension - B Length inch |
1.19 in |
| Dimension - Bolt Hole Size inch |
0.52 in |
| Dimension - Bolt Size fraction |
1/2 |
| Dimension - Bolt Size inch |
0.5 |
| Dimension - D inch |
3.02 in |
| Dimension - Hole Size fraction |
1/2 |
| Dimension - Hole Size inch |
0.56 |
| Dimension - Hole Size mm |
14 mm |
| Dimension - L Length Overall mm |
124 mm |
| Dimension - Length Overall inch |
4.88 in |
| Dimension - N inch |
0.63 in |
| Dimension - Outside Diameter inch |
0.95 in |
| Dimension - Pad Width inch |
1.40 in |
| Dimension - Strip Length inch |
1-1/4 |
| Dimension - Stud Size fraction |
1/2 |
| Dimension - Stud Size inch |
1/2 |
| Dimension - Z (inch) |
0.64 in |
| Physical Attribute - Tongue Angle |
Straight |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper DLO Size Range |
N/A |
| Conductor - Copper Str Navy Size |
400 (127) Navy |
| Conductor - Copper Str Navy Size Range |
400 (127) Navy |
| Conductor - Copper Str Size |
400 KCMIL |
| Conductor - Copper Str Size Range |
400 kcmil |
| Conductor - Material |
COPPER |
| Conductor Size |
400 KCMIL |
| Conductor Type |
CODE |
Configuration
| Connector Type |
STANDARD BARREL |
| Physical Attribute - Number of Holes |
2 |
Logistics
| Carton Quantity |
6 |
| Minimum Pack Quantity |
1 |
PRODUCT DATASHEET
YA322LN
