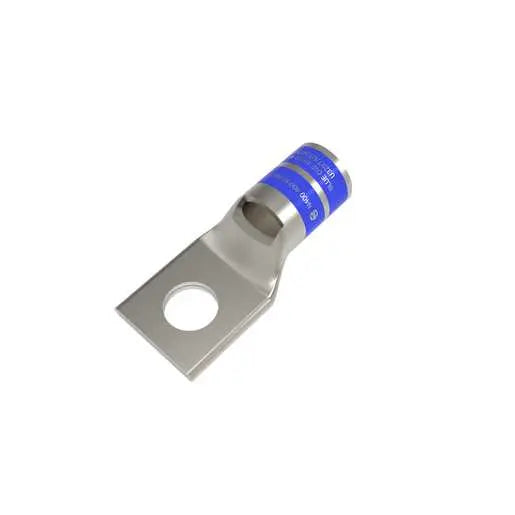

YA32L - Burndy - 5/8" Stud 1-Hole Standard Barrel Compression Terminal
400 kcmil CU, One Hole, 5/8 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90° Up to 35kV, BLUE Color Code, 19 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
GENERAL SPECIFICATIONS
| Application | Wire Termination |
| Catalog Number | YA32L |
| Color Code | Blue |
| Die Index | 19 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style |
|
| Feature - Barrel Type | Standard |
| Material | COPPER |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Standard |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Standard Barrel, Tin Plated |
| UPC | 781810505656 |
| UPC 14 Digit GTIN | 00781810505656 |
Dimensions
| Dimension - B Length fraction | 1-3/16 in |
| Dimension - Bolt Hole Size inch | 0.66 in |
| Dimension - Bolt Size fraction | 5/8 |
| Dimension - Bolt Size inch | 0.63 |
| Dimension - D inch | 1.34 in |
| Dimension - Hole Size fraction | 5/8 |
| Dimension - Hole Size inch | 0.69 |
| Dimension - Hole Size mm | 17.5 mm |
| Dimension - N inch | 0.67 in |
| Dimension - Outside Diameter inch | 0.95 in |
| Dimension - Pad Width inch | 1.40 in |
| Dimension - Strip Length inch | 1-1/4 |
| Dimension - Stud Size fraction | 5/8 |
| Dimension - Stud Size inch | 5/8 |
| Dimension - Z (inch) | 0.67 in |
| Physical Attribute - Tongue Angle | Straight |
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
| Conductor - Copper Str Navy Size | 400 (127) Navy |
| Conductor - Copper Str Navy Size Range | 400 (127) Navy |
| Conductor - Copper Str Size Range | 400 kcmil |
| Conductor - Material | COPPER |
| Conductor Type | CODE |
Configuration
| Physical Attribute - Number of Holes | 1 |
Logistics
| Carton Quantity | 6 |
| Minimum Pack Quantity | 1 |
