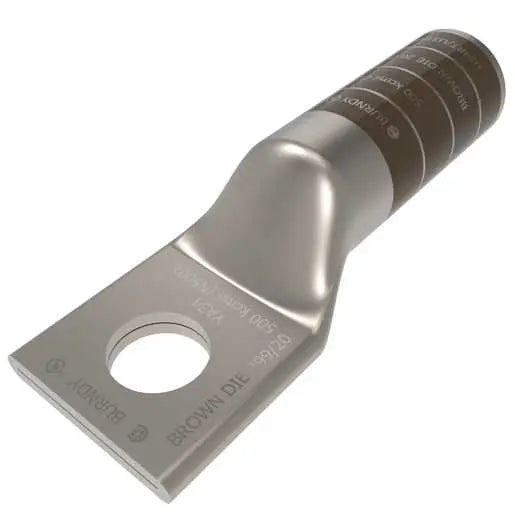

YA34N - Burndy - 1/2" Stud 1-Hole Long Barrel Compression Terminal
500 kcmil CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV,BROWN Color Code, 20 or 299 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
GENERAL SPECIFICATIONS
| Application | Wire Termination |
| Catalog Number | YA34N |
| Color Code | Brown |
| Connector Type | LONG BARREL |
| Die Index | 20 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style |
Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810017937 |
| UPC 14 Digit GTIN | 00781810017937 |
Dimensions
| Dimension - B Length fraction | 2-1/4 in |
| Dimension - B Length inch | 2.25 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Bolt Size inch | 0.5 |
| Dimension - Hole Size fraction | 1/2 |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - L Length Overall mm | 110 mm |
| Dimension - Length Overall inch | 4.32 in |
| Dimension - N inch | 0.63 in |
| Dimension - Outside Diameter inch | 1.06 in |
| Dimension - Pad Width inch | 1.55 in |
| Dimension - Strip Length inch | 2-5/16 in |
| Dimension - Stud Size fraction | 1/2 |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Z (inch) | 0.64 in |
| Physical Attribute - Tongue Angle | Straight |
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
| Conductor - Copper Str Size | 500 KCMIL |
| Conductor - Copper Str Size Range | 500 kcmil |
| Conductor - Material | COPPER |
| Conductor Size | 500 KCMIL |
| Conductor Type | CODE |
Configuration
| Connector Type | LONG BARREL |
| Physical Attribute - Number of Holes | 1 |
Logistics
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 3700 |
