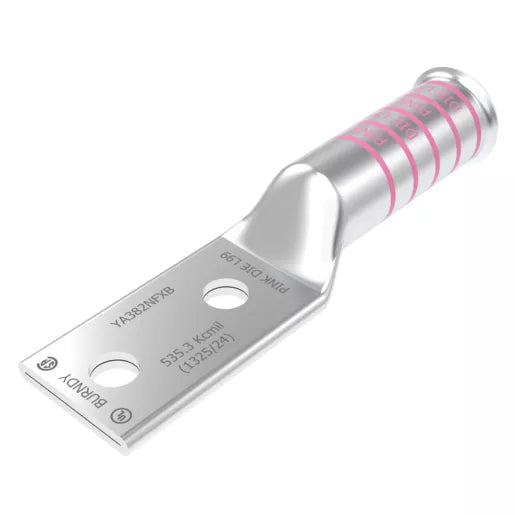

YA382NFXB - Burndy - 1/2" Stud 2-Hole 1-3/4" Spacing Long Barrel Compression Terminal
500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90°C, Up to 35kV, Pink Color Code, L99 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
GENERAL SPECIFICATIONS
| Application | Wire Termination |
| Catalog Number | YA382NFXB |
| Color Code | Pink |
| Connector Type | LONG BARREL |
| Die Index | L99 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style |
Belled |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810039939 |
| UPC 14 Digit GTIN | 00781810039939 |
Dimensions
| Dimension - B Length fraction | 3-1/16 in |
| Dimension - B Length inch | 3.08 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Bolt Size inch | 0.5 |
| Dimension - Hole Size fraction | 1/2 |
| Dimension - Hole Size inch | 0.56 |
| Dimension - Hole Size mm | 14 mm |
| Dimension - L Length Overall mm | 178 mm |
| Dimension - Length Overall inch | 7.01 in |
| Dimension - N inch | 0.62 in |
| Dimension - Outside Diameter inch | 1.25 in |
| Dimension - Pad Width inch | 1.84 in |
| Dimension - Strip Length inch | 3-3/16 |
| Dimension - Stud Size fraction | 1/2 |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Z (inch) | 0.64 in |
| Physical Attribute - Tongue Angle | Straight |
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper DLO Size | 535 KCMIL |
| Conductor - Copper DLO Size Range | 535 kcmil |
| Conductor - Copper Flex G Size | 550 KCMIL |
| Conductor - Copper Flex G Size Range | 550 kcmil |
| Conductor - Copper Flex H Size | 500-550 KCMIL |
| Conductor - Copper Flex H Size Range | 500 / 550 kcmil |
| Conductor - Copper Flex I Size | 500-550 KCMIL |
| Conductor - Copper Flex I Size Range | 500 / 550 kcmil |
| Conductor - Copper Flex K Size | 500 KCMIL |
| Conductor - Copper Flex K Size Range | 500 kcmil |
| Conductor - Copper Flex M Size | 535.3 |
| Conductor - Copper Flex M Size Range | 535.3 |
| Conductor - Copper Str Size | 500-550 KCMIL |
| Conductor - Copper Str Size Range | 500 / 550 kcmil |
| Conductor - Material | COPPER |
| Conductor Size | 500-550 KCMIL |
| Conductor Type | FLEX |
| Wire Size | 500-550 KCMIL |
Configuration
| Connector Type | LONG BARREL |
| Physical Attribute - Number of Holes | 2 |
Logistics
| Carton Quantity | 6 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1776 |
