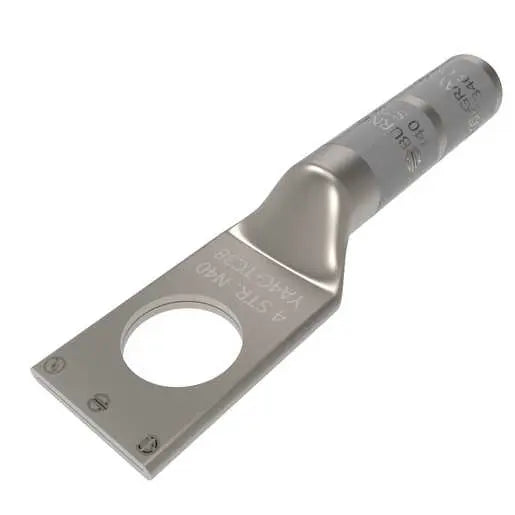

YA4C - Burndy - 1/4" Stud 1-Hole Long Barrel Compression Terminal
4 AWG CU, One Hole, 1/4 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV,GRAY Color Code, 8 or 346 Die Index.
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color
GENERAL SPECIFICATIONS
| Application | Wire Termination |
| Catalog Number | YA4C |
| Color Code | Gray |
| Connector Type | LONG BARREL |
| Die Index | 8 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | HYLUG |
| Temperature Rating | 194 |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810501351 |
| UPC 14 Digit GTIN | 00781810501351 |
Dimensions
| Dimension - B Length fraction | 1-1/8 in |
| Dimension - B Length inch | 1.12 in |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Bolt Size fraction | 1/4 |
| Dimension - Bolt Size inch | 0.25 |
| Dimension - D inch | 0.50 in |
| Dimension - Hole Size fraction | 1/4 |
| Dimension - Hole Size inch | 0.27 |
| Dimension - Hole Size mm | 6.9 mm |
| Dimension - L Length Overall mm | 47 mm |
| Dimension - Length Overall inch | 1.87 in |
| Dimension - N inch | 0.25 in |
| Dimension - Outside Diameter inch | 0.34 in |
| Dimension - Pad Width inch | 0.50 in |
| Dimension - Strip Length inch | 1-3/16 |
| Dimension - Stud Size fraction | 1/4 |
| Dimension - Stud Size inch | 1/4 |
| Dimension - Z (inch) | 0.25 in |
| Physical Attribute - Tongue Angle | Straight |
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
| Conductor - Copper Str Navy Size | 40 (19) Navy |
| Conductor - Copper Str Navy Size Range | 40 (19) Navy |
| Conductor - Copper Str Size | 4 AWG |
| Conductor - Copper Str Size Range | 4 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 4 AWG |
| Conductor Type | CODE |
Operational
| Temperature Rating | 194 |
Configuration
| Connector Type | LONG BARREL |
| Physical Attribute - Number of Holes | 1 |
Logistics
| Carton Quantity | 50 |
| Minimum Pack Quantity | 1 |
