Description
GENERAL
| Application | Industrials, Hospitals, Utilities, Marine, Computer |
| Application - For Use On | Copper Commercial (Code) Cable, Type AN Aircraft Cable, Extra Flexible Conductors |

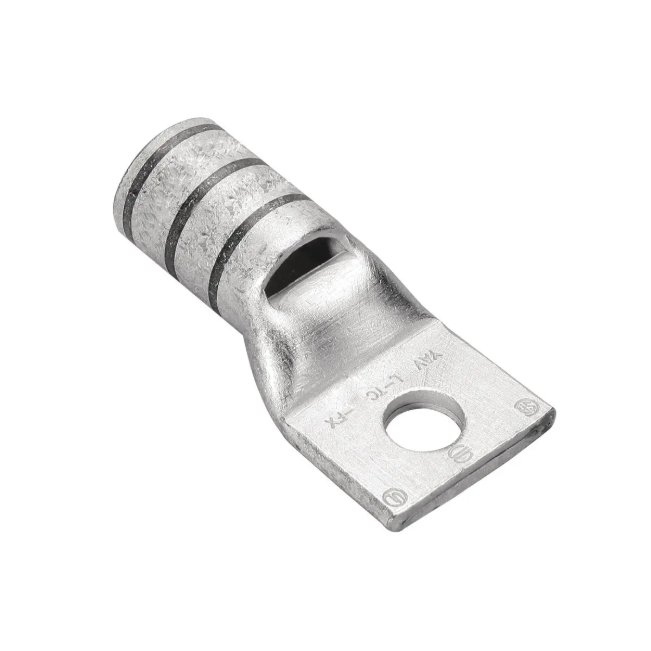

| Catalog Number | YAV1CL3BOX |
| Connector Type | Ring Terminal |
| Die Index | 42 |
| Feature - Barrel Style | Chamfered Skived |
| Feature - Barrel Type | Standard |
| Material | Copper |
| Material Composition | DLP Copper Tin Plating |
| Military Specification | AS20659 |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Ring |
| Plated | Yes |
| Plating Type | Tin |
| Product Family | COMPRESSION |
| Product Type | Terminal |
| Trade Name | HYLUG™ |
| Type | Ring Tongue |
| UPC | 781810539903 |
| UPC 14 Digit GTIN | 00781810539903 |
DIMENSIONS
| Dimension - B Length fraction | 5/8 in |
| Dimension - B Length inch | 0.60 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - D inch | 0.89 in |
| Dimension - Hole Size mm | 13 mm |
| Dimension - Length Overall inch | 1.97 in |
| Dimension - N inch | 0.43 in |
| Dimension - Outside Diameter inch | 0.47 in |
| Dimension - Pad Width inch | 0.86 in |
| Dimension - Strip Length inch | 5/8 in |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Z (inch) | 0.46 in |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
| Physical Attribute - Tongue Angle | Straight |
CONDUCTOR RELATED
| Conductor - Copper Str Aircraft Size | AN 1 |
| Conductor - Copper Str Aircraft Size Range | AN 1 |
| Conductor - Copper Str Size | 1 |
| Conductor - Copper Str Size Range | 1 AWG |
| Conductor Size | 1 AWG |
| Conductor Type | CU C Solid-Size CU C Str-Size |
CERTIFICATIONS AND COMPLIANCE
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 Military Specified (Mil-Spec) |
| Standards - Industry Standards Met | UL486 |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
CONFIGURATION
| Connector Type | Ring Terminal |
| Physical Attribute - Number of Holes | 1 |
LOGISTICS
| Carton Quantity | 10 |
| Minimum Pack Quantity | 1 |
