Description
GENERAL
| Application | Wire Termination |

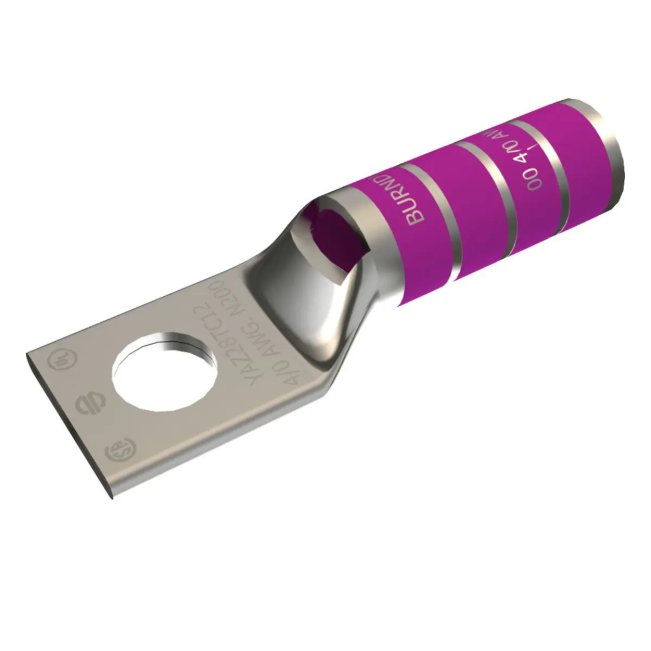

| Catalog Number | YAZ28TC38 |
| Color Code | Purple |
| Connector Type | LONG BARREL |
| Die Index | 15 |
| Feature - Barrel Style | Skived |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 1 |
| Physical Attribute - Number of Holes | 1 |
| Plated | Yes |
| Plating Type | Tin |
| Product Family | COMPRESSION |
| Product Type | Terminal |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Skive, Tin Plated |
| UPC | 781810234488 |
| UPC 14 Digit GTIN | 00781810234488 |
DIMENSIONS
| Dimension - B Length inch | 1.62 in |
| Dimension - Bolt Hole Size inch | 0.4 in |
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - Bolt Size inch | 0.38 |
| Dimension - Hole Size fraction | 3/8 |
| Dimension - Hole Size inch | 0.41 |
| Dimension - Hole Size mm | 10.4 mm |
| Dimension - L Length Overall mm | 75 mm |
| Dimension - Length Overall inch | 2.95 in |
| Dimension - N inch | 0.41 in |
| Dimension - Outside Diameter inch | 0.69 in |
| Dimension - Pad Width inch | 1.02 in |
| Dimension - Strip Length inch | 1-11/16 |
| Dimension - Stud Size fraction | 3/8 |
| Dimension - Stud Size inch | 3/8 |
| Dimension - Z (inch) | 0.42 in |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
| Physical Attribute - Tongue Angle | Straight |
ELECTRICAL RATINGS
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
CONDUCTOR RELATED
| Conductor - Copper Str Navy Size | 200 (61) Navy |
| Conductor - Copper Str Navy Size Range | 200 (61) Navy |
| Conductor - Copper Str Size | 4/0 AWG |
| Conductor - Material | COPPER |
| Conductor Size | 4/0 AWG |
| Conductor Type | CODE |
CERTIFICATIONS AND COMPLIANCE
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL 486A-486B |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
CONFIGURATION
| Connector Type | LONG BARREL |
| Number of Pad Holes | 1 |
| Physical Attribute - Number of Holes | 1 |
LOGISTICS
| Carton Quantity | 30 |
| Minimum Pack Quantity | 1 |
