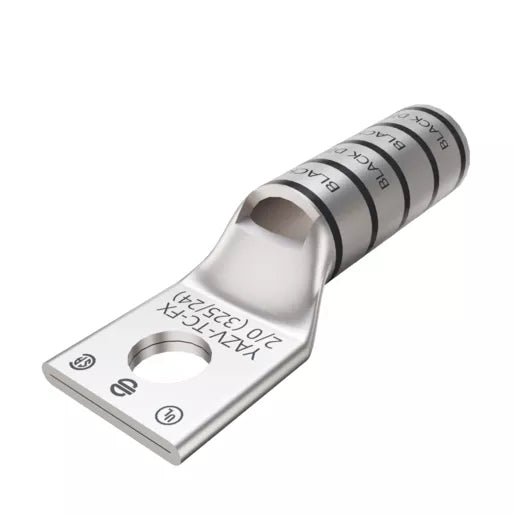

YAZV26TC38FX - Burndy - 1-Hole 3/8" Stud Long Barrel Compression
2/0 Flex G, H, I, K, M, DLO, 2/0 AWG CU, One Hole, 3/8 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90 degC, Up to 35kV, Black Color Code, 13 Die Index.
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
GENERAL SPECIFICATIONS
| Application |
Wire Termination |
| Catalog Number |
YAZV26TC38FX |
| Color Code |
Black |
| Connector Type |
LONG BARREL |
| Construction Material - Main |
Copper tubing |
| Die Index |
13 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
Skived |
| Feature - Barrel Type |
Long |
| Finish Type |
Tin-Plated |
| Material |
COPPER |
| Physical Attribute - Number of Holes |
1 |
| Plated |
Y |
| Plating Type |
Tin |
| Sub Brand |
HYLUG |
| Trade Name |
HYLUG(TM) |
| Type |
YAZV, Long Barrel |
| UPC |
781810241554 |
| UPC 14 Digit GTIN |
00781810241554 |
Dimensions
| Dimension - B Length fraction |
1-1/2 in |
| Dimension - B Length inch |
1.50 in |
| Dimension - Bolt Hole Size inch |
0.39 in |
| Dimension - Bolt Size fraction |
3/8 |
| Dimension - Bolt Size inch |
0.38 |
| Dimension - Hole Size fraction |
3/8 |
| Dimension - Hole Size inch |
0.41 |
| Dimension - Hole Size mm |
10.4 mm |
| Dimension - L Length Overall mm |
71 mm |
| Dimension - Length Overall inch |
2.80 in |
| Dimension - N inch |
0.41 in |
| Dimension - Outside Diameter inch |
0.63 in |
| Dimension - Pad Width inch |
0.93 in |
| Dimension - Strip Length inch |
1-9/16 |
| Dimension - Stud Size fraction |
3/8 |
| Dimension - Stud Size inch |
3/8 |
| Dimension - Z (inch) |
0.42 in |
| Physical Attribute - Tongue Angle |
Straight |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper DLO Size |
2/0 AWG |
| Conductor - Copper DLO Size Range |
2/0 AWG |
| Conductor - Copper Flex G Size |
"2/0 AWG" |
| Conductor - Copper FlexG Size Range
|
2/0 AWG
|
| Conductor - Copper Flex H Size
|
"2/0 AWG"
|
| Conductor - Copper Flex H Size Range
|
2/0 AWG
|
| Conductor - Copper Flex I Size
|
"2/0 AWG"
|
| Conductor - Copper Flex I Size Range
|
2/0 AWG
|
| Conductor - Copper Flex K Size
|
"2/0 AWG"
|
| Conductor - Copper Flex K Size Range
|
2/0 AWG
|
| Conductor - Copper Flex M Size
|
"2/0 AWG"
|
| Conductor - Copper Flex M SizeRange
|
2/0 AWG
|
| Conductor - Copper Str Compact Size
|
"2/0 AWG"
|
| Conductor -Copper Str Navy Size
|
125 |
| Conductor - Copper Str Size |
"2/0 AWG" |
| Conductor - Copper Str Size Range |
2/0 AWG |
| Conductor - CopperWeld Str Size |
2/0 F AWG; 2/0 G AWG; 2/0 J AWG; 2/0 K AWG; 2/0 V AWG |
| Conductor - CopperWeld Str Size Range |
2/0 F AWG-2/0 V AWG |
| Conductor - Material |
COPPER |
| Conductor Size |
2/0 AWG |
| Conductor Type |
CODE/FLEX |
| Wire Size |
2/0 AWG |
Configuration
| Connector Type |
LONG BARREL |
| Physical Attribute - Number of Holes |
1 |
Logistics
| Carton Quantity |
50 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
23200 |
PRODUCT DATASHEET
YAZV26TC38FX
