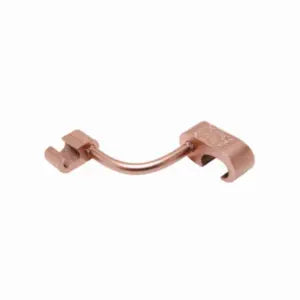

YGL34C29 - Burndy - 5/8" to 3/4" Ground Rod Copper Compression Cross Grid Connector
Copper Compression Cross Grid Connector, 250 kcmil - 500 kcmil or 5/8" - 3/4" Ground Rod or # 5 - 6 Rebar, 2 AWG (Str.) - 250 kcmil.
- Irreversible compression ground grid cross connector allows adjustment of the compression elements prior to installation
- UL467 Listed
- Acceptable for Direct Burial in earth and concrete
- Prefilled with PENETROX™ compound and strip sealed
GENERAL SPECIFICATIONS
| Application |
For Direct Burial In Earth And Concrete |
| Catalog Number |
YGL34C29 |
| Connector Type |
Tap |
| Die Index |
997;998 |
| EU RoHS Indicator |
Yes |
| Material |
Copper |
| Oxide Inhibitor Type |
Penetrox E |
| Plated |
N |
| Plating Type |
Unplated |
| Prefilled Oxide Inhibitor |
Y |
| Sub Brand |
HYGROUND, HYGRID |
| Trade Name |
HYGRID™ |
| Type |
Taps |
| UPC |
781810220047 |
| UPC 14 Digit GTIN |
00781810220047
|
Dimensions
| Dimension - B Length fraction |
3/4 in |
| Dimension - B Length fraction |
0.75 in |
| Dimension - D inch |
0.50 in |
| Dimension - L Length Overall mm |
64 mm |
| Dimension - Length Overall inch |
2.50 in |
| Dimension - Pad Width inch |
2.09 in |
Conductor Related
| Conductor - Copper Str Size A |
250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil |
| Conductor - Copper Str Size A Range |
250 kcmil - 500 kcmil |
| Conductor - Copper Str Size B |
2 AWG; 1 AWG; 1/0; 2/0 AWG; 3/0 AWG; 4/0 AWG; 250 kcmil |
| Conductor - Copper Str Size B Range |
2 AWG - 250 kcmil |
| Conductor - Rebar Size A |
5; 6 |
| Conductor - Rebar Size A Range |
5 - 6 |
| Conductor - Rod Size A |
5/8 in; 3/4 in |
| Conductor - Rod Size A Range |
5/8 in - 3/4 in |
| Conductor Type |
CU C Solid-Size ACU C Str-Size ARod-Size ARebar-Size ACU C Solid-Size BCU C Str-Size B |
Configuration
Logistics
| Carton Quantity |
6 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
1776 |
