Description
GENERAL
| Application | For Direct Burial In Earth And Concrete |

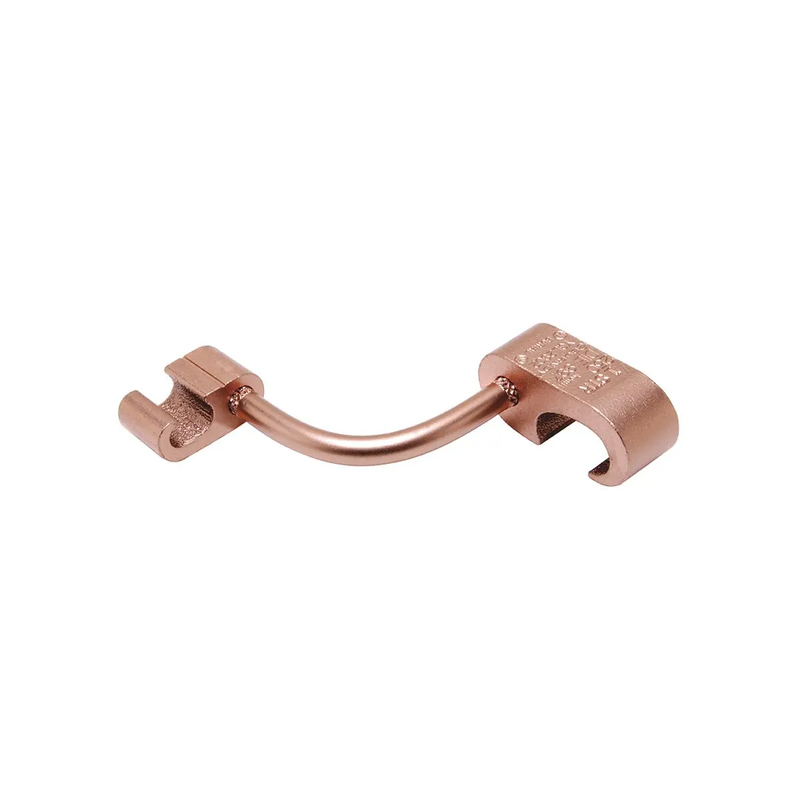

| Catalog Number | YGL34C34 |
| Connector Type | Tap |
| Die Index | 1011 |
| Material | Copper |
| Oxide Inhibitor Type | Penetrox E |
| Plated | No |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Y |
| Product Family | Grounding and Bonding Connectors>"Hyground" Compression Grounding Connectors>Cross Grid Connections |
| Product Type | Compression |
| Sub Brand | HYGRID |
| Trade Name | HYGRID™ |
| Type | Taps |
| UPC | 781810220054 |
| UPC 14 Digit GTIN | 00781810220054 |
DIMENSIONS
| Dimension - B Length fraction | 1-1/9 in |
| Dimension - B Length inch | 1.10 in |
| Dimension - D inch | 0.75 in |
| Dimension - L Length Overall mm | 64 mm |
| Dimension - Length Overall inch | 2.50 in |
| Dimension - Pad Width inch | 2.28 in |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CONDUCTOR RELATED
| Conductor - Copper Str Size A | 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil |
| Conductor - Copper Str Size A Range | 250 kcmil-500 kcmil |
| Conductor - Copper Str Size B | 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil |
| Conductor - Copper Str Size B Range | 250 kcmil-500 kcmil |
| Conductor - Rebar Size A | 5 ;6 |
| Conductor - Rebar Size A Range | 5 -6 |
| Conductor - Rod Size A | 5/8 in;3/4 in |
| Conductor - Rod Size A Range | 5/8 in-3/4 in |
| Conductor Type | CU C Solid-Size A CU C Str-Size A Rod-Size A Rebar-Size A CU C Solid-Size B CU C Str-Size B |
CERTIFICATIONS AND COMPLIANCE
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 IEEE 837 |
| Standards - Industry Standards Met | UL467;IEEE 837 |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
CONFIGURATION
| Connector Type | Tap |
LOGISTICS
| Carton Quantity | 6 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 900 |
