YH292C - Burndy - 250 kcmil-2 AWG Run Cu Compression H Tap
Copper Compression H Tap, Tin Plated, Accommodating the following wire sizes - Run (Main): 250 kcmil-2 AWG Class B,C, 4/0 AWG-2 AWG Class I, DLO; Tap 1: 2 AWG-6 AWG Class B, C, Solid, and 2 AWG-8 AWG Class I, DLO. See sale drawing for metric wire size accommodates
- Uninsulated compression H-tap connector, tin-plated
- Designs with more than one tap wire groove require installers to utilize a minimum of one Main (Run) and one Tap groove, other grooves can be left empty

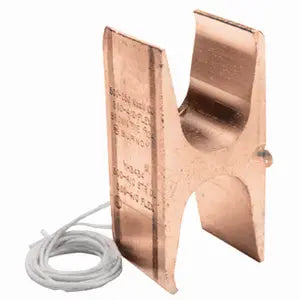

- 'Third Hand' is a string provided with the H-tap connector and is used to wrap the wire while being inserted into the run and tap grooves
- H-tap connectors can be purchased separately or kitted with covers
- YH is connector sold separately without cover
- YH-WC is kitted H-tap connector and black cover
- YH-WCC is kitted H-tap connector and clear cover
GENERAL SPECIFICATIONS
| Application |
Wire Tap |
| Catalog Number |
YH292C |
| Color Code |
Purple |
| Connector Type |
H-Tap |
| Die Index |
654 |
| EU RoHS Indicator |
Yes |
| Finish Type |
Tin-Plated |
| Material |
COPPER |
| Plated |
Y |
| Plating Type |
Tin - Electro Plated |
| Sub Brand |
CRIMPIT |
| Temperature Rating |
194 |
| Trade Name |
CRIMPIT™ |
| Type |
Compression Taps |
| UPC |
781810013878 |
| UPC 14 Digit GTIN |
00781810013878 |
Dimensions
| Dimension - Height inch |
1.52 in |
| Dimension - L Length Overall mm |
23 mm |
| Dimension - Length Overall inch |
0.90 in |
| Dimension - Strip Length inch |
1-1/16 in |
| Dimension - Width fraction |
0.90 in |
| Dimension - Width inch |
1.52 in |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper Flex G Run |
2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Flex G Run Range |
2 AWG-4/0 AWG |
| Conductor - Copper Flex H Run |
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Flex H Run Range |
8 AWG-4/0 AWG |
| Conductor - Copper Flex I Run |
4/0 AWG-2 AWG |
| Conductor - Copper Flex I Run Range |
2 AWG-4/0 AWG |
| Conductor - Copper Flex I Tap |
8;7;6;5;4;3;2 |
| Conductor - Copper Flex I Tap Range |
2 AWG-8 AWG |
| Conductor - Copper Flex K Run |
2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Flex K Run Range |
2 AWG-4/0 AWG |
| Conductor - Copper Flex K Tap |
8;7;6;5;4;3;2 |
| Conductor - Copper Flex M Run |
2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Flex M Run Range |
2 AWG-4/0 AWG |
| Conductor - Copper Flex M Tap |
8;7;6;5;4;3;2 |
| Conductor - Copper Solid Tap |
6;5;4;3;2 |
| Conductor - Copper Str Run |
2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Str Run Range |
250 KCMIL-2 AWG |
| Conductor - Copper Str Tap Range |
2 AWG-6 AWG |
| Conductor - Material |
COPPER |
| Conductor Type |
CODE/FLEX |
Operational
Configuration
Logistics
| Carton Quantity |
60 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
8640 |
PRODUCT DATASHEET
YH292C
