Description
GENERAL
| Application | Wire Tap |
| Catalog Number | YH292CWCC |
| Color Code | Purple |

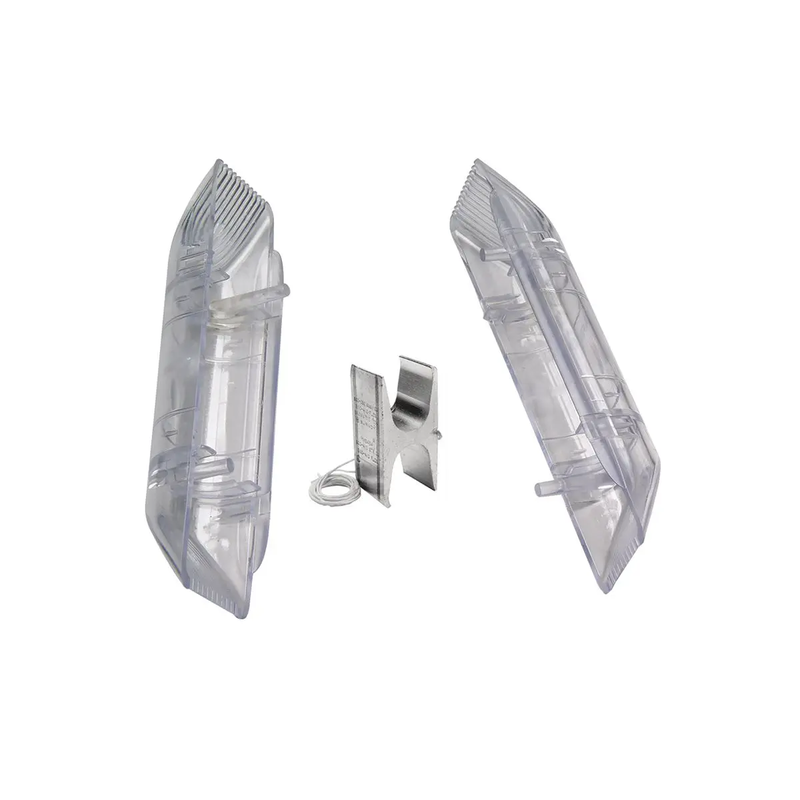

| Connector Type | H-TAP W/CLR COVER |
| Die Index | 654 |
| Finish Type | Tin-Plated |
| Material | Copper |
| Plated | Yes |
| Plating Type | Tin |
| Product Family | COMPRESSION |
| Product Type | Run/Tap |
| Sub Brand | CRIMPIT |
| Temperature Rating | 194 |
| Trade Name | CRIMPIT™ |
| Type | Compression Taps |
| UPC | 781810436431 |
| UPC 14 Digit GTIN | 00781810436431 |
DIMENSIONS
| Dimension - L Length Overall mm | 23 mm |
| Dimension - Length Overall inch | 0.90 in |
| Dimension - Strip Length inch | 1-1/16 |
| Dimension - Width inch | 1.52 in |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
ELECTRICAL RATINGS
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
CONDUCTOR RELATED
| Conductor - Copper Flex G Run | 2;1;1/0;2/0;3/0;4/0 |
| Conductor - Copper Flex G Tap | 8;7;6;5;4;3;2 |
| Conductor - Copper Flex H Tap | 8;7;6;5;4;3;2 |
| Conductor - Copper Flex I Run | 4/0 AWG-2 AWG |
| Conductor - Copper Flex I Tap | 8;7;6;5;4;3;2 |
| Conductor - Copper Flex I Tap Range | 2 AWG-8 AWG |
| Conductor - Copper Flex K Run | 2;1;1/0;2/0;3/0;4/0 |
| Conductor - Copper Flex K Tap | 8;7;6;5;4;3;2 |
| Conductor - Copper Flex M Run | 2;1;1/0;2/0;3/0;4/0 |
| Conductor - Copper Flex M Tap | 8;7;6;5;4;3;2 |
| Conductor - Copper Solid Tap | 6;5;4;3;2 |
| Conductor - Copper Str Run | 2;1;1/0;2/0;3/0;4/0;250 |
| Conductor - Copper Str Run Range | 250 KCMIL-2 AWG |
| Conductor - Copper Str Tap Range | 2 AWG-6 AWG |
| Conductor - Material | COPPER |
| Conductor Type | CODE/FLEX |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | Buy America Compliant (All status valid till December 2026) Buy American Act Compliant (All status valid till December 2026) BABA Compliant (All status valid till December 2026) |
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL 486A-486B |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
OPERATIONAL
| Temperature Rating | 194 |
CONFIGURATION
| Connector Type | H-TAP W/CLR COVER |
LOGISTICS
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 825 |
