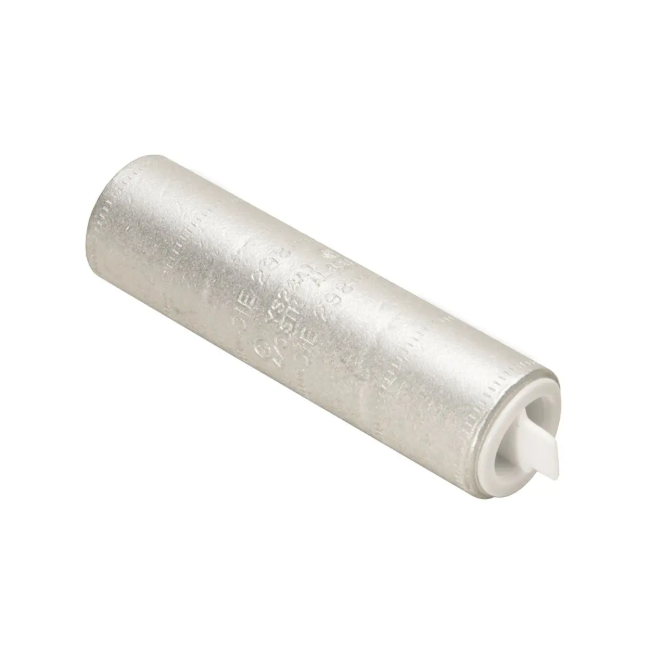

Description
GENERAL
| Application | Wire Splice |
| Catalog Number | YS27A1 |
| Color Code | Ruby |
| Connector Type | DUAL RATED |
| Die Index | 467 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Aluminum |
| Plated | Yes |
| Plating Type | Tin |
| Product Family | COMPRESSION |
| Product Type | Splice |
| Sub Brand | HYLINK |
| Temperature Rating | 194 |
| Trade Name | HYLINK™ |
| Type | YS-A, Standard Barrel |
| UPC | 781810757208 |
| UPC 14 Digit GTIN | 00781810757208 |
DIMENSIONS
| Dimension - B Length fraction | 1-5/16 in |
| Dimension - B Length inch | 1.31 in |
| Dimension - L Length Overall mm | 73 mm |
| Dimension - Length Overall inch | 2.88 in |
| Dimension - Outside Diameter inch | 0.76 in |
| Dimension - Strip Length inch | 1-1/2 in |
| Length | 2.88 in |
| Outside Diameter | 0.76 in |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
ELECTRICAL RATINGS
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
CONDUCTOR RELATED
| Conductor - AL Str Size | 3/0 AWG |
| Conductor - AL Str Size Range | 3/0 AWG |
| Conductor - Copper Str Compact Size | 3/0 |
| Conductor - Copper Str Size | 1000 KCMIL |
| Conductor - Copper Str Size Range | 3/0 AWG |
| Conductor - Material | ALUMINUM / COPPER |
| Conductor Size | 3/0 AWG |
| Conductor Type | CODE |
| Wire Size | 1000 KCMIL |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | TAA Compliant (All status valid till December 2026) |
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL 486A-486B |
| Standards - Industry Standards Met | UL 486A-486B |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
OPERATIONAL
| Temperature Rating | 194 |
CONFIGURATION
| Connector Type | DUAL RATED |
LOGISTICS
| Carton Quantity | 5 |
| Minimum Pack Quantity | 1 |
