Description

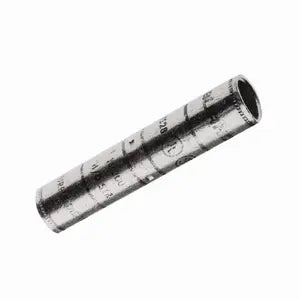

YS29 - Burndy - 250 kcmil Long Barrel Cu Compression Splice
250 kcmil CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, YELLOW Color Code, 16 Die Index.
- Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors clearly marked with color coding
GENERAL SPECIFICATIONS
| Application | Wire Splice |
| Catalog Number | YS29 |
| Color Code | Yellow |
| Connector Type | LONG BARREL |
| Die Index | 16 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | HYLINK |
| Trade Name | HYLINK™ |
| Type | YS, Long Barrel |
| UPC | 781810507957 |
| UPC 14 Digit GTIN | 00781810507957 |
Dimensions
|
Dimension - B Length inch
|
1.58 in
|
|
Dimension - L Length Overall mm
|
91 mm
|
|
Dimension - Length Overall inch
|
3.58 in
|
|
Dimension - Strip Length inch
|
1-11/16
|
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
| Conductor - Copper Str Navy Size | 250 (61) Navy |
| Conductor - Copper Str Size | 250 kcmil |
| Conductor - Copper Str Size Range | 250 kcmil |
| Conductor - Material | COPPER |
| Conductor Size | 250 KCMIL |
| Conductor Type | CODE |
| Wire Size | 250 kcmil |
Configuration
| Connector Type | LONG BARREL |
Logistics
| Carton Quantity | 10 |
| Minimum Pack Quantity | 1 |
