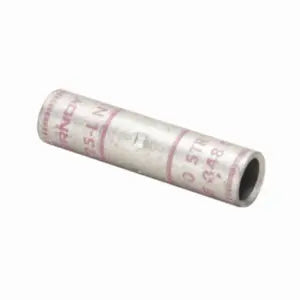

YS2CLBOX - Burndy - 2 AWG Cu Standard Barrel Compression Splice
2 AWG CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90 degC, Up to 35kV, BROWN Color Code, 10 Die Index
- Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors clearly marked with color coding
GENERAL SPECIFICATIONS
| Application |
Wire Splice |
| Catalog Number |
YS2CLBOX |
| Color Code |
Brown |
| Connector Type |
STANDARD BARREL |
| Die Index |
10 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
Chamfered |
| Feature - Barrel Type |
Standard |
| Finish Type |
Tin-Plated |
| Material |
COPPER |
| Plated |
Y |
| Plating Type |
Tin - Electro Plated |
| Sub Brand |
HYLINK |
| Trade Name |
HYLINK(TM) |
| Type |
YS-L, StandardBarrel |
| UPC |
781810555255 |
| UPC 14 Digit GTIN |
00781810555255
|
Dimensions
| Dimension - B Length fraction |
7/8 in |
| Dimension - B Length inch |
0.88 in |
| Dimension - L Length Overall mm |
51 mm |
| Dimension - Length Overall inch |
2.00 in |
| Dimension - Outside Diameter inch |
0.42 in |
| Dimension - Strip Length inch |
15/16 |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper Str Navy Size |
60 (37) Navy |
| Conductor - Copper Str Size |
2 AWG |
| Conductor - Copper Str Size Range |
2 AWG |
| Conductor - Material |
COPPER |
| Conductor Size |
2 AWG |
| Conductor Type |
CODE |
| Wire Size |
#2 AWG |
Configuration
| Connector Type
|
STANDARD BARREL |
Logistics
| Carton Quantity |
25 |
| Minimum Pack Quantity |
1 |
PRODUCT DATASHEET
YS2CLBOX
