Description

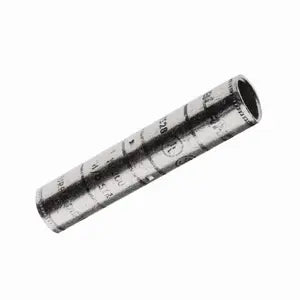

YS32 - Burndy - YS32 400 kcmil Long Barrel Compression Splice
400 kcmil CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, BLUE Color Code, 19 or 470 Die Index.
- Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors clearly marked with color coding
GENERAL SPECIFICATIONS
| Application | Wire Splice |
| Catalog Number | YS32 |
| Color Code | Blue |
| Connector Type | LONG BARREL |
| Die Index | 19 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | HYLINK |
| Trade Name | HYLINK™ |
| Type | YS, Long Barrel |
| UPC | 781810508404 |
| UPC 14 Digit GTIN | 00781810508404 |
Dimensions
|
Dimension - B Length inch
|
2.08 in
|
|
Dimension - L Length Overall mm
|
117 mm
|
|
Dimension - Length Overall inch
|
4.62 in
|
|
Dimension - Strip Length inch
|
2-1/16
|
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
|
Conductor - Copper Str Navy Size
|
400 (127) Navy
|
|
Conductor - Copper Str Size
|
400 kcmil
|
|
Conductor - Copper Str Size Range
|
400 kcmil
|
|
Conductor - Material
|
COPPER
|
|
Conductor Size
|
400 KCMIL
|
|
Conductor Type
|
CODE
|
|
Wire Size
|
400 kcmil
|
Configuration
| Connector Type | LONG BARREL |
Logistics
| Carton Quantity | 6 |
| Minimum Pack Quantity | 1 |
