Description

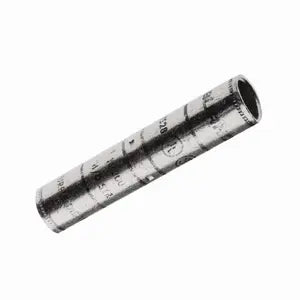

YS44 - Burndy - 1000 kcmil Long Barrel Compression Splice
1000 kcmil CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, WHITE Color Code, 27 Die Index.
- Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors clearly marked with color coding
GENERAL SPECIFICATIONS
| Application | Wire Splice |
| Catalog Number | YS44 |
| Color Code | White |
| Connector Type | LONG BARREL |
| Die Index | 27 |
| EU RoHS Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | COPPER |
| Plated | Y |
|
Plating Type |
Tin - Electro Plated |
| Sub Brand | HYLINK |
| Trade Name | HYLINK™ |
| Type | YS, Long Barrel |
| UPC | 781810527603 |
| UPC 14 Digit GTIN | 00781810527603 |
Dimensions
|
Dimension - B Length inch
|
2.94 in
|
|
Dimension - L Length Overall mm
|
166 mm
|
|
Dimension - Length Overall inch
|
6.55 in
|
|
Dimension - Strip Length inch
|
3
|
Electrical Ratings
| Voltage - Maximum | 35000 |
| Voltage Rating | 35 kV |
Conductor Related
|
Conductor - Copper Str Size
|
1000 kcmil
|
|
Conductor - Copper Str Size Range
|
1000 kcmil
|
|
Conductor - Material
|
COPPER
|
|
Conductor Size
|
1000 KCMIL
|
|
Conductor Type
|
CODE
|
|
Wire Size
|
1000 kcmil
|
Configuration
| Connector Type | LONG BARREL |
Logistics
| Carton Quantity | 3 |
| Minimum Pack Quantity | 1 |
PRODUCT DATASHEET
