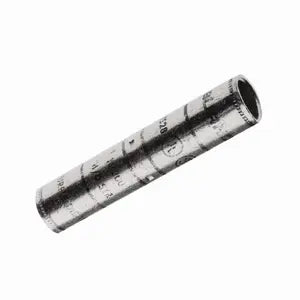

YS4C - Burndy - 4 AWG Long Barrel Compression Splice
4 AWG CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90 degC, Up to 35kV, GRAY Color Code, 8 or 346 Die Index.
- Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors clearly marked with color coding
GENERAL SPECIFICATIONS
| Application |
Wire Splice |
| Catalog Number |
YS4C |
| Color Code |
Gray |
| Connector Type |
LONG BARREL |
| Die Index |
8 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
Chamfered |
| Feature - Barrel Type |
Long |
| Finish Type |
Tin-Plated |
| Material |
COPPER |
| Plated |
Y |
| Plating Type |
Tin - Electro Plated |
| Sub Brand |
HYLINK |
| Trade Name |
HYLINK(TM) |
| Type |
YS, Long Barrel |
| UPC |
781810507209 |
| UPC 14 Digit GTIN |
00781810507209
|
Dimensions
| Dimension - B Length inch |
1.09 in |
| Dimension - L Length Overall mm |
65 mm |
| Dimension - Length Overall inch |
2.55 in |
| Dimension - Strip Length inch |
1-3/16 |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper Str Navy Size |
40 (19) Navy |
| Conductor - Copper Str Size |
4 AWG |
| Conductor - Copper Str Size Range |
4 AWG |
| Conductor - Material |
COPPER |
| Conductor Size |
4 AWG |
| Conductor Type |
CODE |
| Wire Size |
#4 AWG |
Configuration
| Connector Type
|
LONG BARREL |
Logistics
| Carton Quantity |
50 |
| Minimum Pack Quantity |
1 |
PRODUCT DATASHEET
YS4C
