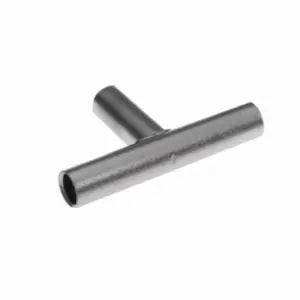

YST3434 - Burndy - 500 kcmil Standard Barrel Tapered Ends Compresson T-Connector
Cu compression T-Coupler, 500Kcmil(Run),500Kcmil(Tap), Brown(Run&Tap), 20(Run&Tap) Index.
- High conductivity electrolytic copper tubing with heavy wall thickness, Type YST T-couplers provide low resistance for excellent electrical conductivity
- Featuring long barrel length for all three wire accommodating barrels allows for an increased number of crimps increasing the mechanical strength of the connection while allowing the connection to operate at a lower temperature rating
- Accommodates a wide range of run / tap combinations
- Connectors are clearly marked
GENERAL SPECIFICATIONS
| Application |
T-Connector |
| Catalog Number |
YST3434 |
| Color Code |
Brown |
| Color Code - Side A |
Brown |
| Color Code - Side B |
Brown |
| Die Index |
20/20 |
| Die Index Run Side |
20 |
| Die Index Tap Side |
20 |
| EU RoHS Indicator |
Yes |
| Feature - Barrel Style |
Chamfered |
| Feature - Barrel Type |
Long |
| Material |
COPPER |
| Sub Brand |
HYTEE |
| Temperature Rating |
194 |
| Trade Name |
HYTEE™ |
| Type |
YST, Uninsulated T |
| UPC |
781810502075 |
| UPC 14 Digit GTIN |
00781810502075 |
Dimensions
| Dimension - A Outside Diameter inch |
1.06 in |
| Dimension - B Length fraction |
2-1/4 in |
| Dimension - B Outside Diameter inch |
1.06 in |
| Dimension - Height inch |
3.76 in |
| Dimension - Height mm |
95.5 mm |
| Dimension - Length BB inch |
2.70 in |
| Dimension - Width inch |
2.60 in |
Electrical Ratings
| Voltage - Maximum |
35000 |
| Voltage Rating |
35 kV |
Conductor Related
| Conductor - Copper Str Run |
500 KCMIL |
| Conductor - Copper Str Run Range |
500 kcmil |
| Conductor - Copper Str Tap |
500 KCMIL |
| Conductor - Copper Str Tap Range |
500 kcmil |
| Conductor - Material |
COPPER |
| Conductor Type |
CODE |
Operational
Logistics
| Carton Quantity |
10 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
2400 |
PRODUCT DATASHEET
YST3434
