ZA2BD2 - Schneider Electric - Square D 2 Position Selector Switch

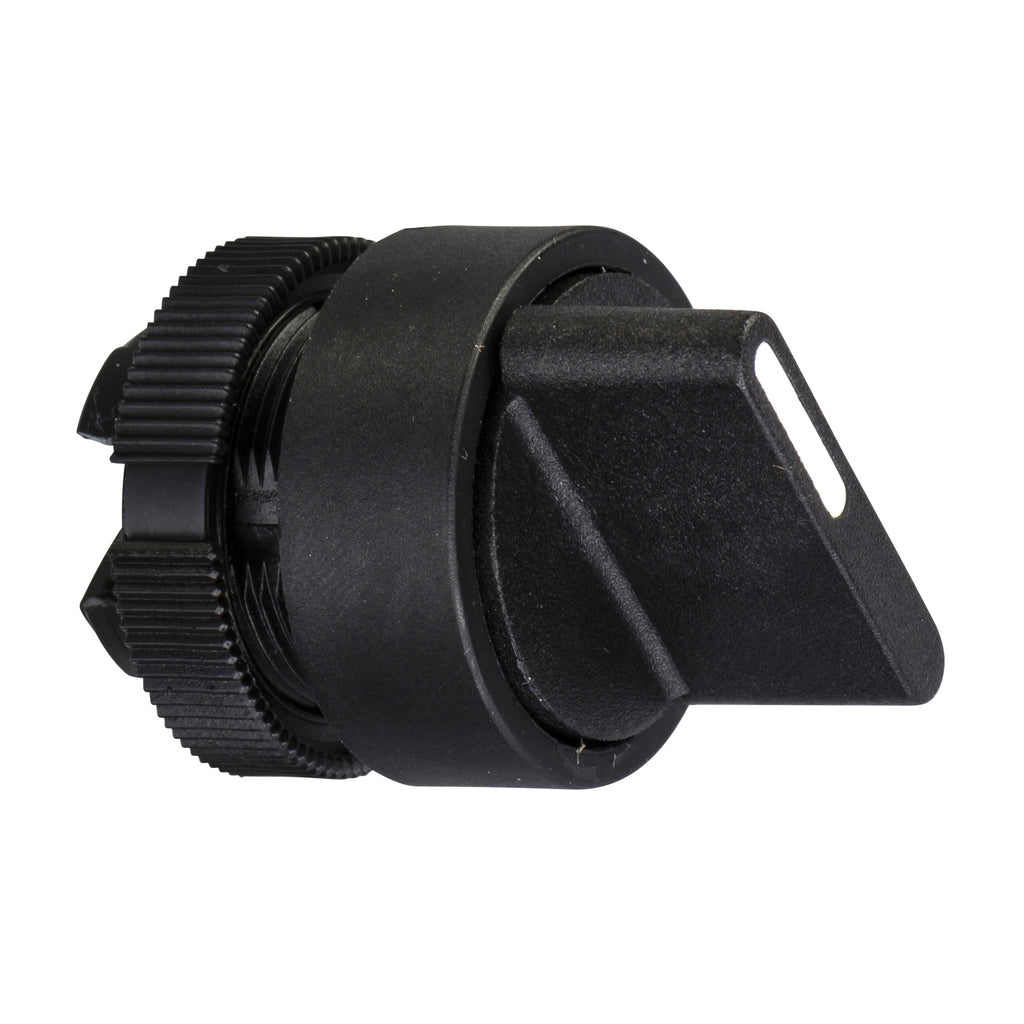

This Harmony ZA2BD2 is a black selector switch, 2 positions, standard handle. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
GENERAL SPECIFICATIONS
| Range of Product | Harmony XAC |
|---|---|
| Product or Component Type | Selector switch |
| Component name | ZA2 |
| Product Compatibility | XACA |
| Net Weight | 0.040 lb(US) (0.018 kg) |
|---|---|
| Cap/operator or lens colour | Black |
| Marking | Unmarked |
| Mounting Location | Base of enclosure Front of enclosure |
| Sale per indivisible quantity | 1 |
| Standards | CSA C22.2 No 14 IEC 60947-5-1 IEC 60204-32 UL 508 |
|---|---|
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Category | US10CS222460 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110645309 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.6 in (4.0 cm) |
| Package 1 Width | 1.6 in (4.0 cm) |
| Package 1 Length | 2.0 in (5.0 cm) |
| Package weight(Lbs) | 0.7 oz (21.0 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 2.0 in (5.0 cm) |
| Package 2 Width | 7.9 in (20.0 cm) |
| Package 2 Length | 7.9 in (20.0 cm) |
| Package 2 Weight | 7.6 oz (215.0 g) |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 5.9 in (15.0 cm) |
| Package 3 Width | 11.8 in (30.0 cm) |
| Package 3 Length | 15.7 in (40.0 cm) |
| Package 3 Weight | 5.461 lb(US) (2.477 kg) |
