Description

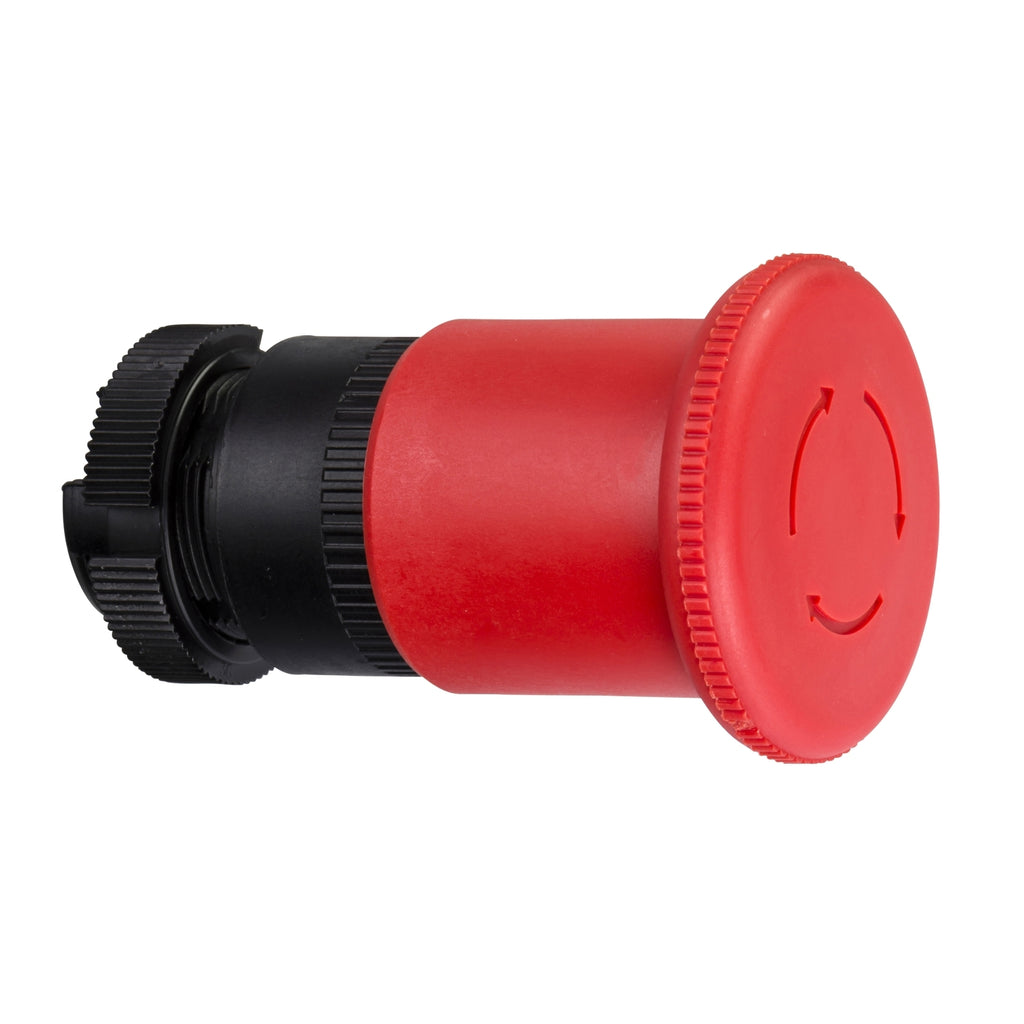

ZA2BS844 - Schneider Electric - 40mm Square D Head for Emergency Switching Off Push-button
This Harmony XAC, emergency stop / shutdown 40mm mushroom red push-button head operates with a latched turn to release mechanism. This emergency stop button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
GENERAL SPECIFICATIONS
| Range of Product | Harmony XAC |
|---|---|
| Product or Component Type | Head for emergency switching off push-button |
| Sale per indivisible quantity | 1 |
| Product Compatibility | XACA.. |
|---|---|
| Mounting Location | Front of enclosure |
| Overvoltage category | Class II conforming to IEC 61140 |
| Operator profile | Red mushroom Ø 40 mm |
| Net Weight | 0.11 lb(US) (0.05 kg) |
| Marking | Unmarked |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
|---|---|
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| IK degree of protection | IK08 |
| Standards | IEC 60204-32 IEC 60947-5-1 CSA C22.2 No 14 UL 508 IEC 60947-5-5 IEC 62262 |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Category | US10CS222460 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110591767 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.61 in (4.100 cm) |
| Package 1 Width | 4.33 in (11.000 cm) |
| Package 1 Length | 3.94 in (10.000 cm) |
| Package 1 Weight | 1.587 oz (45.000 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 5.91 in (15.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 4.277 lb(US) (1.940 kg) |
